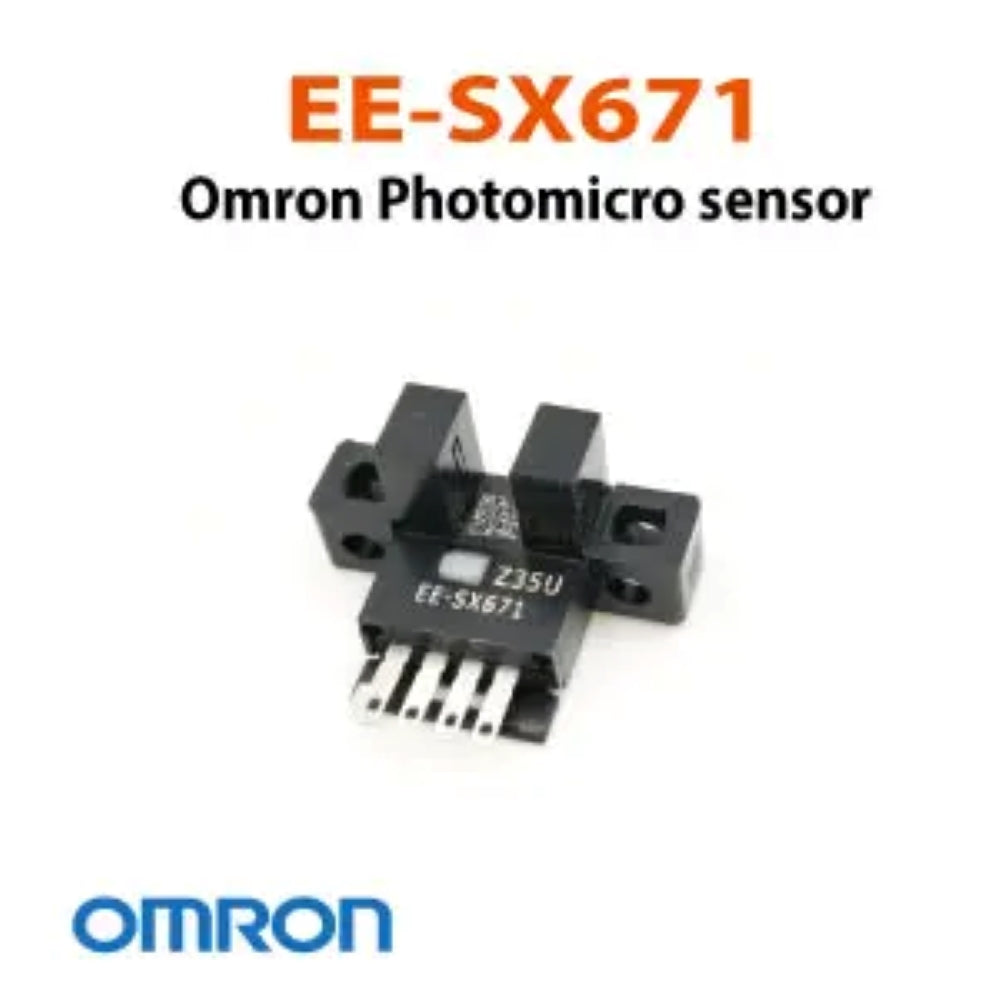

EE-SX671 Omron Photoelectric Sensor

Sensing Distance

5 mm (slot width)

Minimum Sensing Object

Opaque, 2 × 0.8 mm

Light Source

Infrared LED

Peak Wavelength

940 nm

Supply Voltage

5–24 V DC ±10%

Current Consumption

12 mA

Output Configuration

NPN Open Collector

Maximum Load Current

100 mA

Residual Voltage

0.8 V max. at 100 mA

Response Frequency

1 kHz minimum, 3 kHz average

Response Time

0.17 ms

Differential Distance

0.025 mm max.

Indicator

Red LED; lights when incident light is received

Housing Material

PBT plastic

Dimensions (W × H × D)

26.2 × 15.5 × 18.3 mm

Mounting Type

Chassis mounting

Operating Temperature

−25°C to +55°C

Protection Rating

IP50
