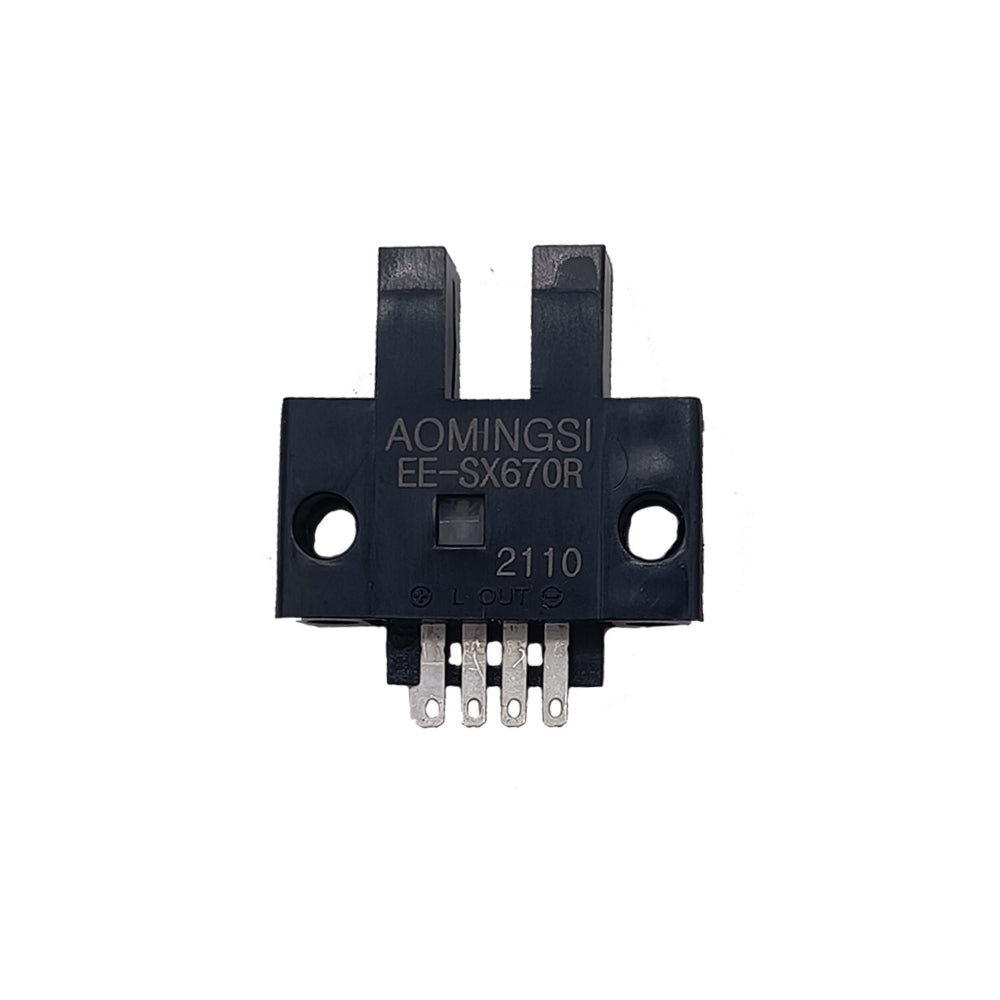

EE-SX670R Omron Photoelectric Sensor

Sensing Distance

5 mm (slot width)

Minimum Sensing Object

Opaque, 2 × 0.8 mm

Light Source

Infrared LED

Peak Wavelength

940 nm

Supply Voltage

5–24 V DC ±10%

Current Consumption

12 mA max.

Output Configuration

PNP Open Collector

Maximum Load Current

50 mA

Residual Voltage

1.3 V max. at 50 mA

Response Time

0.17 ms

Differential Distance

0.025 mm

Operation Indicator

Red LED; ON when light is interrupted

Housing Material

PBT plastic

Dimensions (W × H × D)

25.4 × 22.2 × 6.95 mm

Mounting Type

Chassis mounting

Operating Temperature

−25°C to +55°C

Protection Rating

IP50
