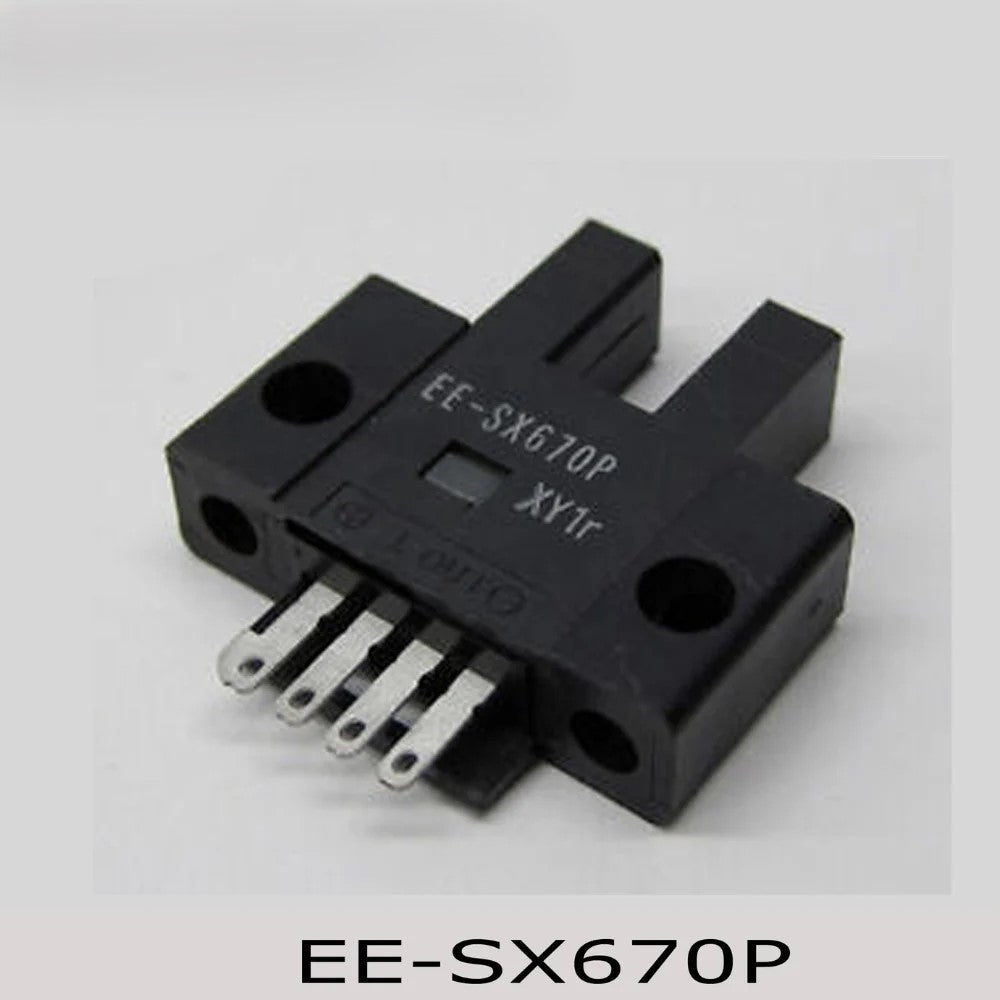

EE-SX670P Omron Photoelectric Sensor

Sensing Distance

5 mm (slot width)

Minimum Sensing Object

Opaque, 2 × 0.8 mm

Light Source

Infrared LED

Peak Wavelength

940 nm

Supply Voltage

5–24 V DC ±10%

Current Consumption

12 mA max.

Output Configuration

PNP Open Collector

Maximum Load Current

50 mA

Residual Voltage

1.3 V max. at 50 mA

Leakage Current

0.5 mA max.

Response Frequency

1 kHz min., 3 kHz average

Response Time

0.17 ms

Differential Distance

0.025 mm

Indicator

No indicator on standard EE-SX670P

Housing Material

PBT plastic

Dimensions (L × H × W)

25.4 × 22.2 × 6.95 mm

Mounting Type

Chassis mounting

Operating Temperature

−25°C to +55°C

Protection Circuit

Load short-circuit protection
