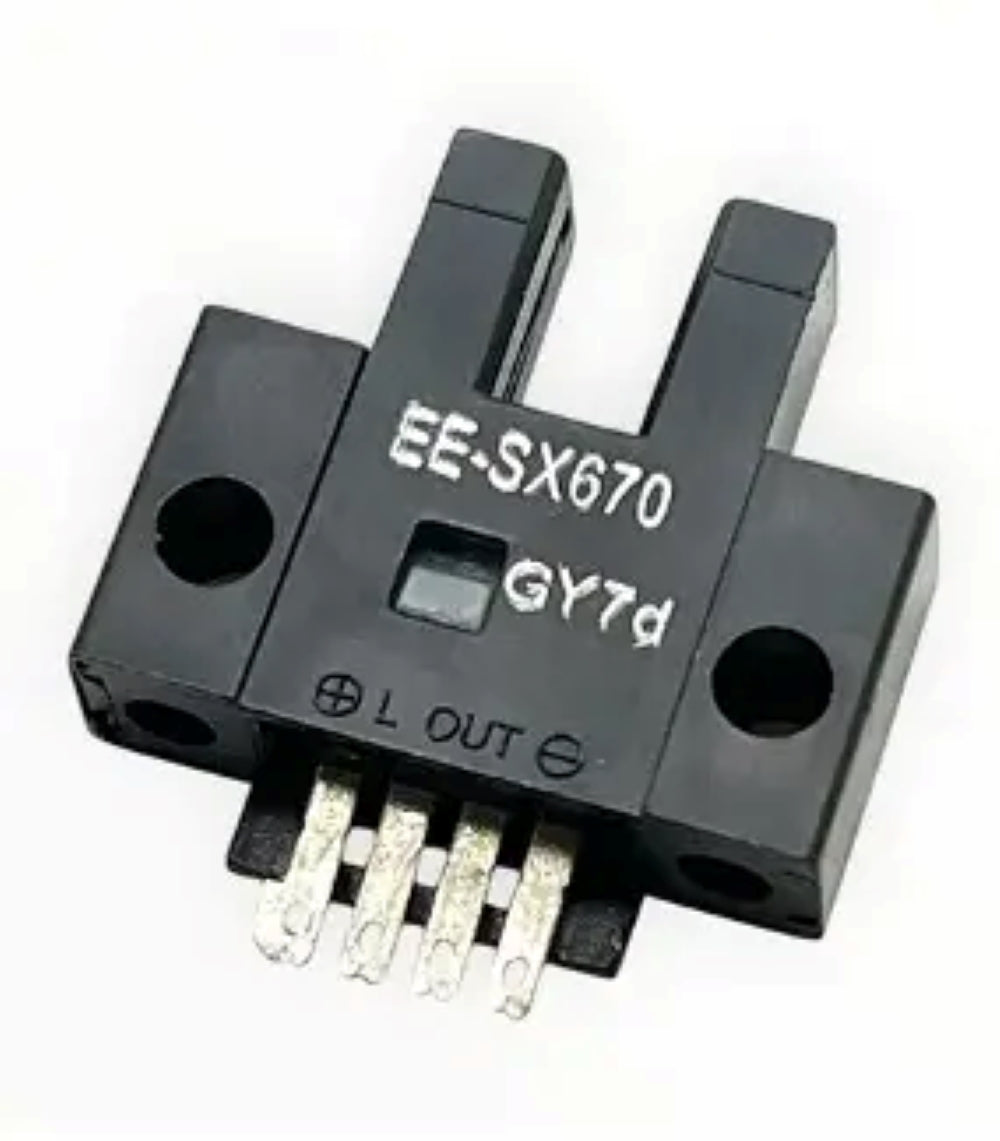

EE-SX670 OMRON Photoelectric SENSOR

Sensing Distance

5 mm (slot width)

Minimum Sensing Object

Opaque, 2 × 0.8 mm

Light Source

Infrared LED

Peak Wavelength

940 nm

Supply Voltage

5–24 V DC

Output Configuration

NPN Open Collector

Output Operation

Light-ON / Dark-ON selectable

Response Time

0.17 ms

Connection Type

4-pole system connector

Housing Material

PBT plastic

Indicator

Red LED

Differential Distance

0.025 mm

Operating Temperature

−25°C to +55°C

Protection Rating

Confirm from the datasheet for the exact model

Dimensions

25.4 × 22.2 × 6.95 mm

Mounting Type

Chassis mount
