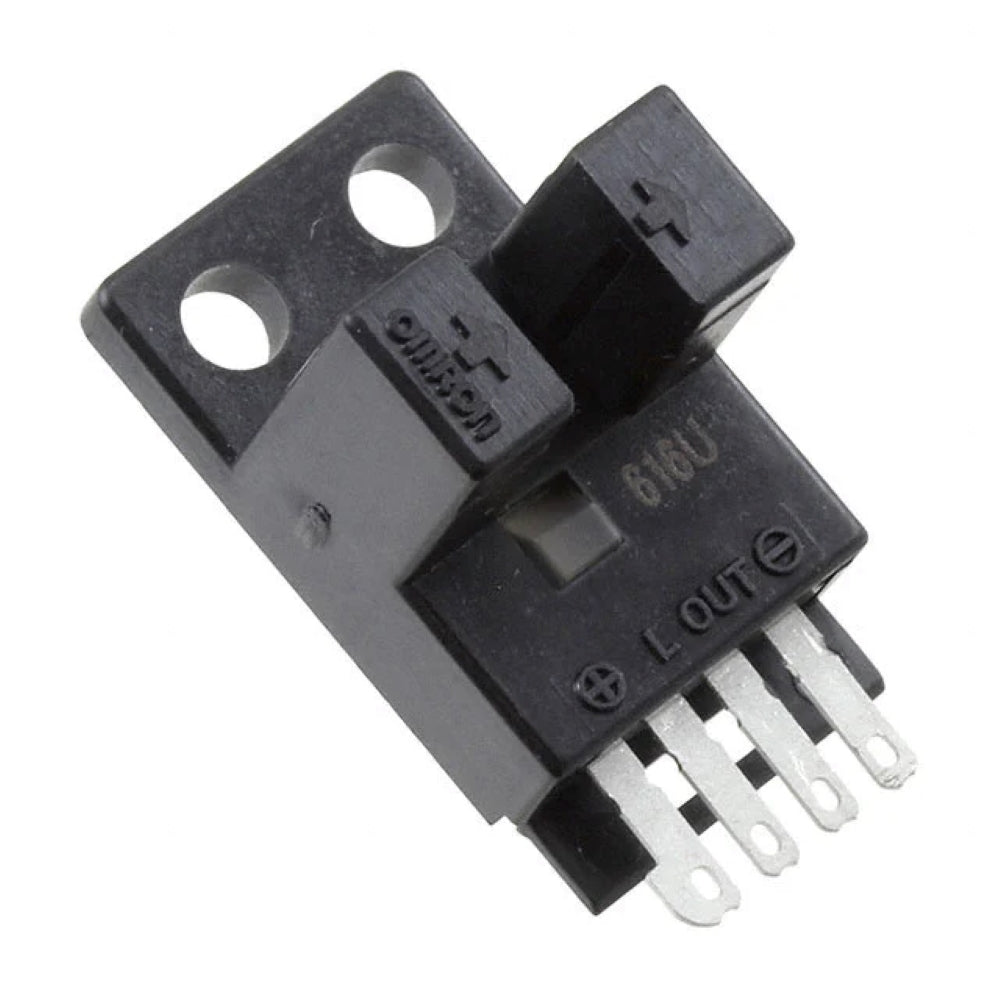

EE-SX474P Omron Photoelectric Sensor

Sensing Distance

5 mm (Slot Width)

Standard Sensing Object

Opaque, 2 × 0.8 mm minimum

Light Source

Infrared LED

Wavelength

940 nm

Supply Voltage

5–24 V DC ±10%

Current Consumption

30 mA max.

Output Load Current

50 mA max.

Output Type

PNP Open Collector

Residual Voltage

1.3 V max.

Response Frequency

1 kHz minimum, 3 kHz typical

Differential Distance

0.025 mm

Indicator

Red LED

Connection Type

4-pole connector

Housing Material

PBT plastic

Protection Rating

IP50

Operating Temperature

−25°C to +55°C

Weight

Approx. 3 g
