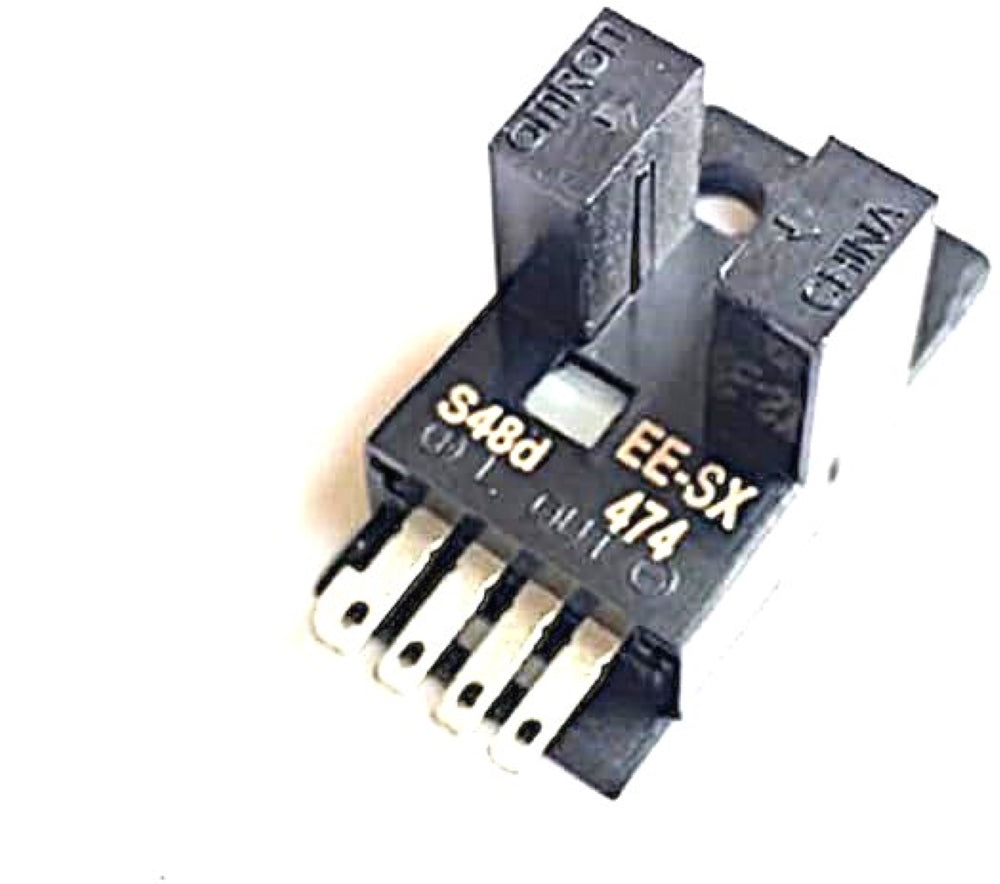

EE-SX474 Omron Photoelectric Sensor

Sensing Distance

5 mm (Slot Width)

Light Source

Infrared LED

Wavelength

940 nm

Supply Voltage

5–24 V DC ±10%

Current Consumption

35 mA max.

Output Load Current

100 mA max.

Response Frequency

1 kHz minimum, 3 kHz average

Standard Sensing Object

Opaque object, 2 × 0.8 mm minimum

Differential Distance

0.025 mm

Indicator

Red LED

Connection Type

Connector / Plug-in

Housing Material

PBT plastic

Protection Rating

IP50

Operating Temperature

−25°C to +55°C

Dimensions

Refer to official dimensional drawing

Weight

Approx. 3 g (connector model, family reference)
