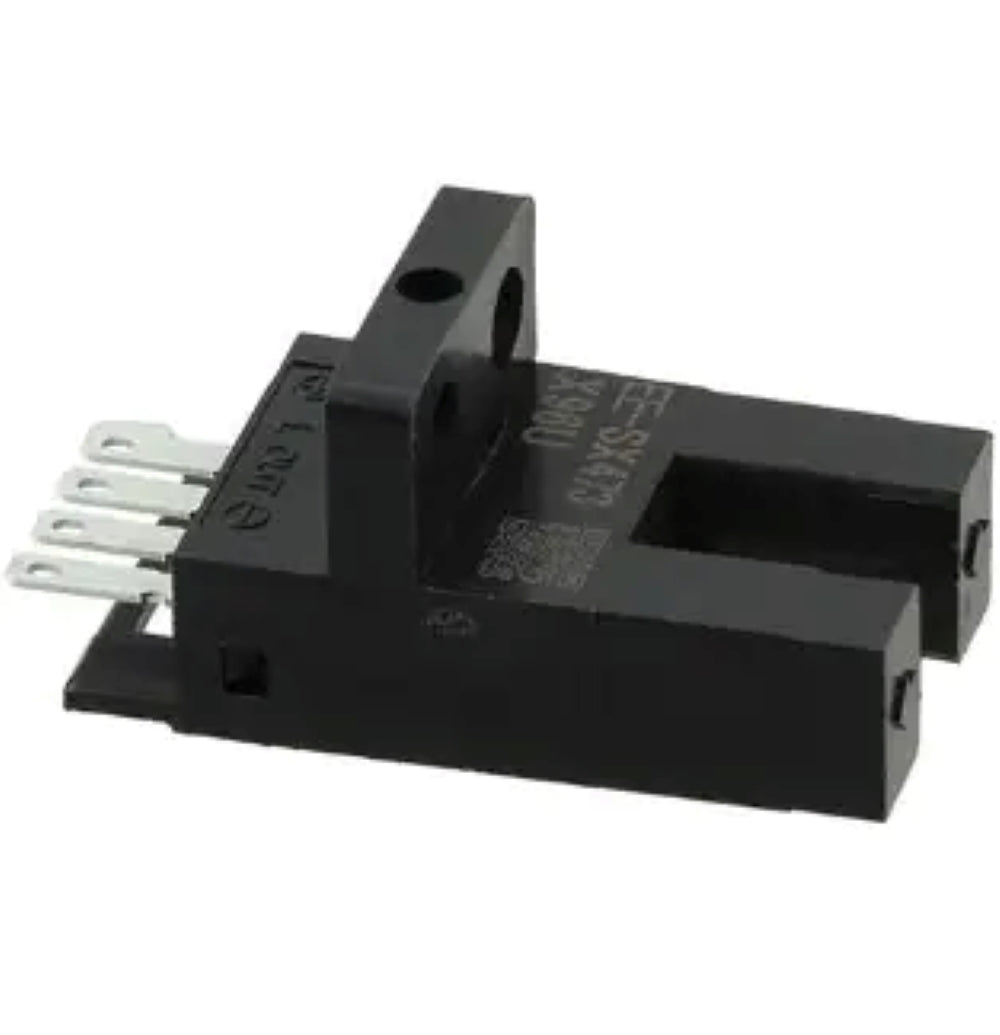

EE-SX473P Omron Photoelectric Sensor

Product Type

Photoelectric Sensor

Sensor Type

Slot-Type Photomicrosensor

Housing Type

Close-Mounting

Sensing Method

Through-Beam

Sensing Distance

5 mm (slot width)

Minimum Sensing Object

Opaque object, 2 × 0.8 mm

Output Type

PNP Open Collector

Output Mode

Light-ON

Supply Voltage

5–24 V DC

Current Consumption

12 mA max.

Maximum Load Current

50 mA

Response Frequency

1 kHz minimum, 3 kHz average

Light Source

Infrared LED

Wavelength

940 nm

Connection Type

Connector

Housing Material

PBT

Protection Rating

IP50

Operating Temperature

-25°C to +55°C

Storage Temperature

-30°C to +80°C

Dimensions (W × H × D)

Approx. 12.8 × 14.4 × 13.4 mm

Weight

Approx. 2.3 g
