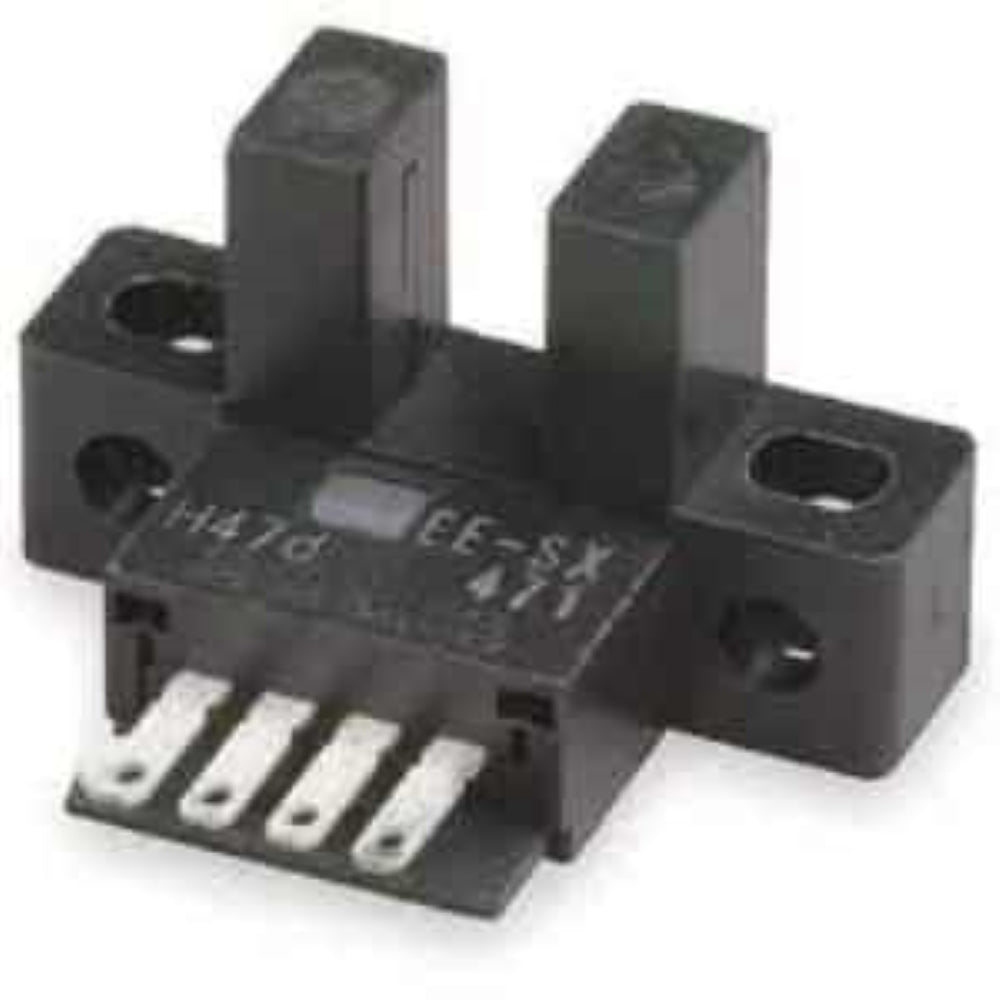

EE-SX471P Omron Photoelectric Sensor

Product Type

Photoelectric Sensor

Sensor Type

Slot-Type Photomicrosensor

Housing Type

L-Shaped

Sensing Method

Through-Beam

Sensing Distance

5 mm (slot width)

Output Type

PNP Open Collector

Output Mode

Light-ON

Supply Voltage

5–24 V DC

Maximum Load Current

50 mA

Response Frequency

1 kHz minimum, 3 kHz typical

Response Time

Approx. 0.17 ms

Light Source

Infrared LED

Wavelength

940 nm

Connection Type

4-Pin Connector

Housing Material

PBT

Protection Circuit

Load Short-Circuit Protection

Operating Temperature

-25°C to +55°C

Dimensions (W × H × D)

26.2 × 15.5 × 18.3 mm
