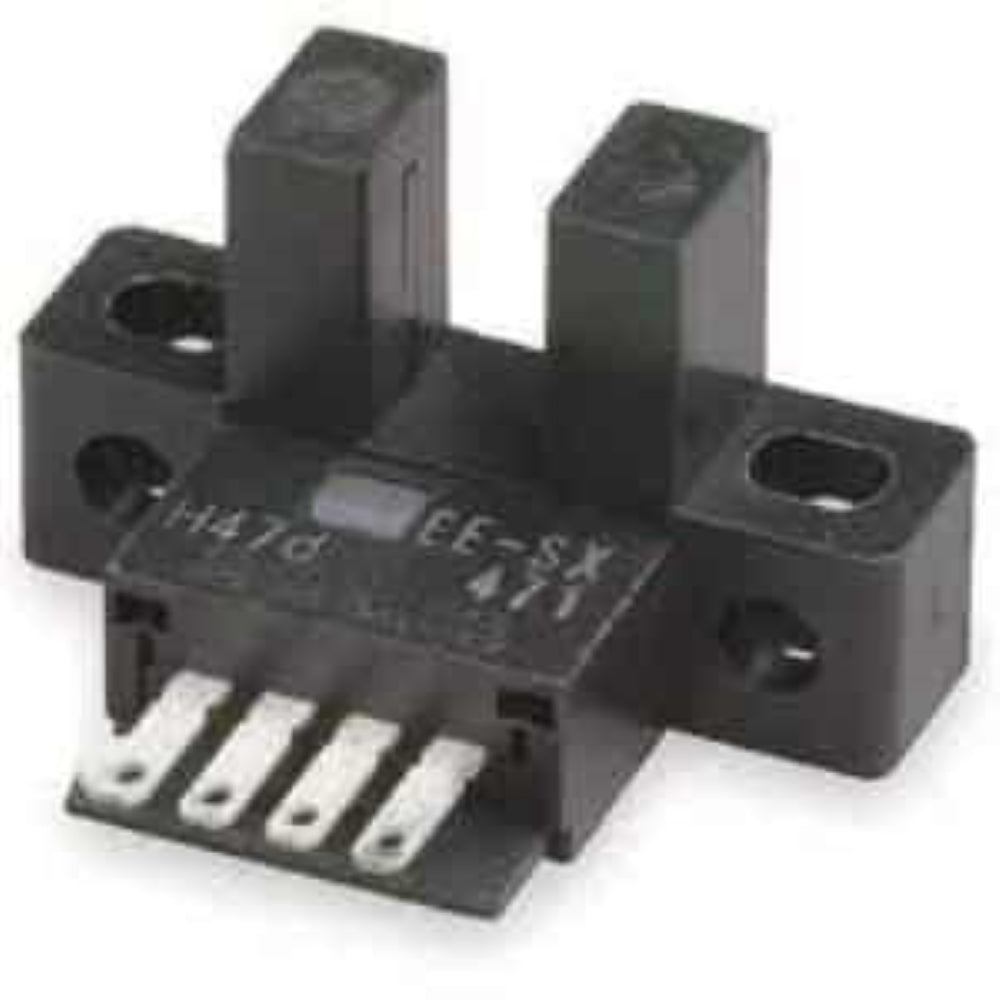

EE-SX471 Omron Photoelectric Sensor

Product Type

Photoelectric Sensor

Sensor Type

Slot Type Photomicrosensor

Model

EE-SX471

Housing Type

L-Shaped

Sensing Method

Through-Beam

Sensing Distance

5 mm

Output Type

NPN Open Collector

Output Mode

Light-ON

Supply Voltage

5–24 V DC

Maximum Load Current

100 mA

Response Frequency

Minimum 1 kHz, average 3 kHz

Response Time

Approx. 0.17 ms

Light Source

Infrared LED, 940 nm

Connection Type

4-Pin Connector

Housing Material

PBT

Protection Rating

IP50

Operating Temperature

-25°C to +55°C

Dimensions (W × H × D)

26.2 × 15.5 × 18.3 mm

Weight

Approx. 3 g
