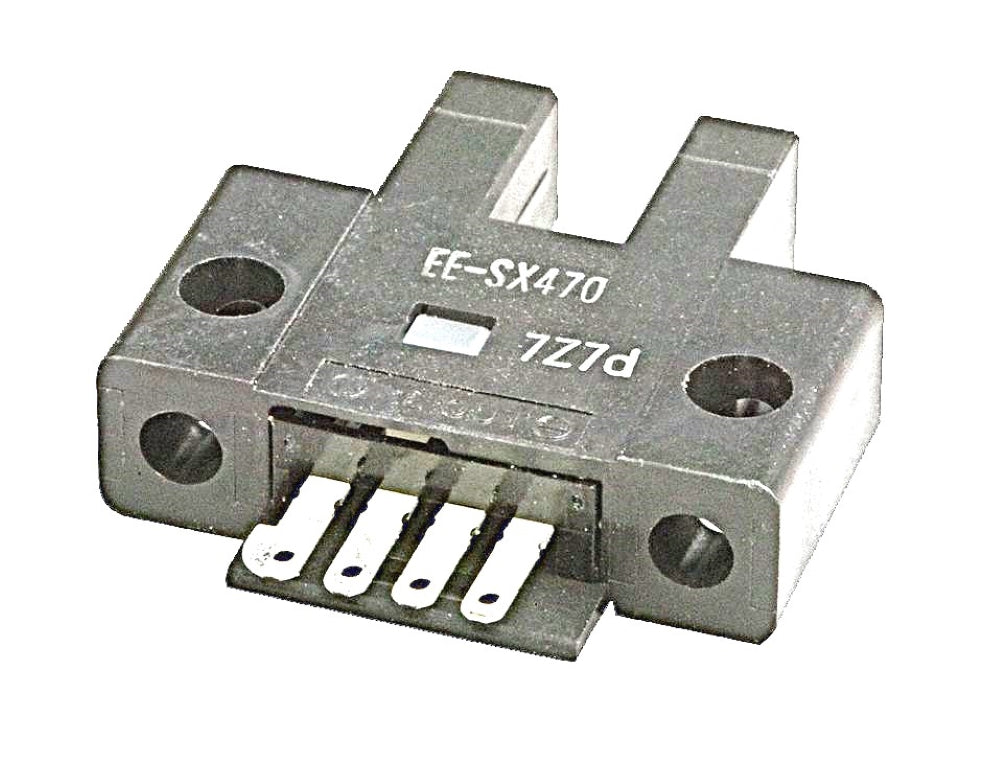

EE-SX470 PHOTOELECTRIC SENSOR

Model Number

EE-SX470

Sensing Distance

5 mm (slot width)

Minimum Detectable Object

Opaque object, 2 × 0.8 mm

Differential Distance

0.025 mm maximum

Light Source

Infrared LED

Wavelength

940 nm

Supply Voltage

5–24 V DC ±10%

Current Consumption

12 mA maximum

Output Type

NPN Open Collector

Maximum Load Current

100 mA

Residual Voltage

0.8 V maximum at 100 mA

Response Frequency

1 kHz minimum; 3 kHz average

Operation Mode

Light-ON

Indicator

Red LED

Protection Rating

IP50

Operating Temperature

-25°C to +55°C

Storage Temperature

-30°C to +80°C

Connection Type

4-pin connector; direct soldering possible

Cable Length

No standard attached cable

Housing Material

PBT

Cover Material

Polycarbonate

Weight

Approx. 3.1 g
