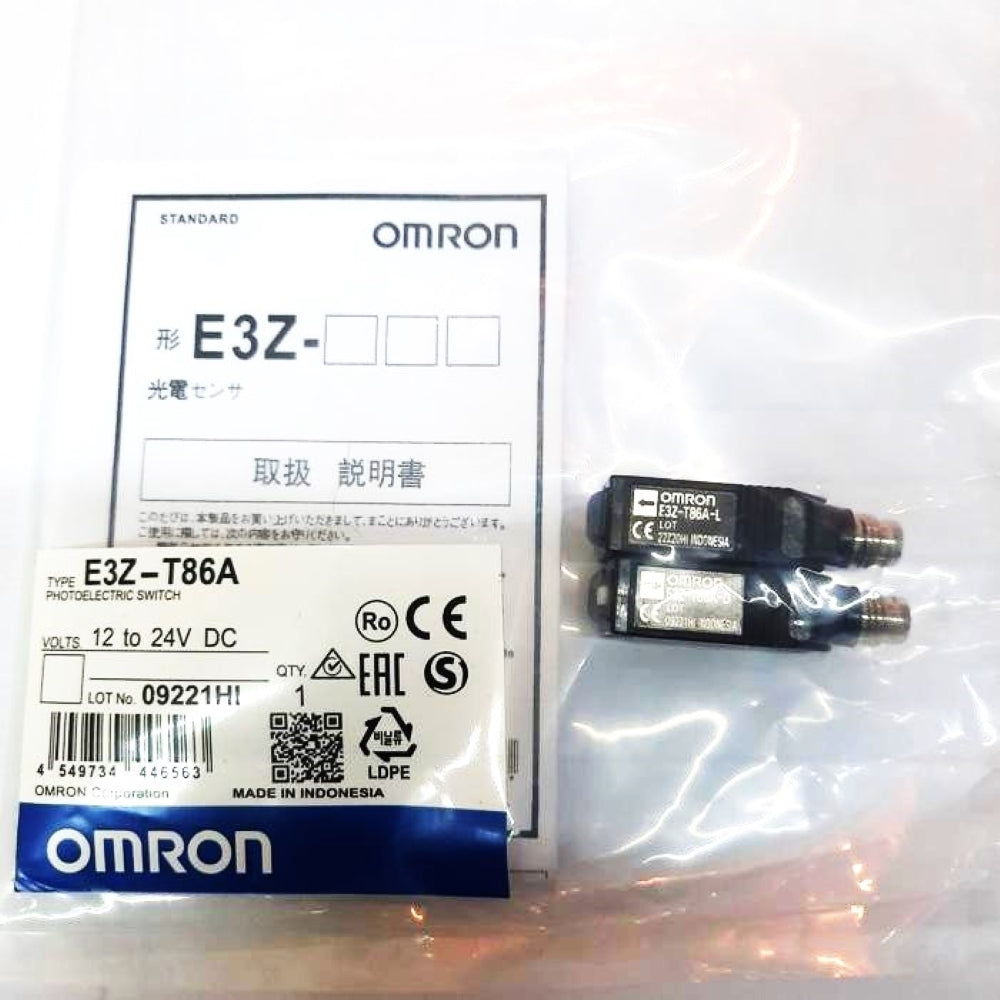

E3Z-T86A Omron Photoelectric Sensor

E3Z-T86A Omron Photoelectric Sensor

• Specification	E3Z-T86A
  Brand	Omron
  Model	E3Z-T86A
  Sensor Type	Photoelectric Sensor
  Sensing Method	Through-beam
  Shape	Cuboid / Square
  Sensing Distance	10 m
  Output Type	PNP Open Collector
  NO / NC	Light-ON / Dark-ON selectable
  Light Source	Red LED, 660 nm
  Supply Voltage	12–24 VDC ±10%
  Load Current	100 mA max.
  Response Time	1 ms max.
  Standard Sensing Object	Opaque, 12 mm dia. minimum
  Connection	M8, 4-pin connector
  Housing Material	PBT
  Protection Rating	IP67
  Dimensions (W × H × D)	10.8 × 31 × 20 mm
  Sensitivity Adjustment	Single-turn adjustment
  Directional Angle	Emitter: 3–15°; Receiver: 3–15°
  Operation Mode	Light-ON / Dark-ON selectable
