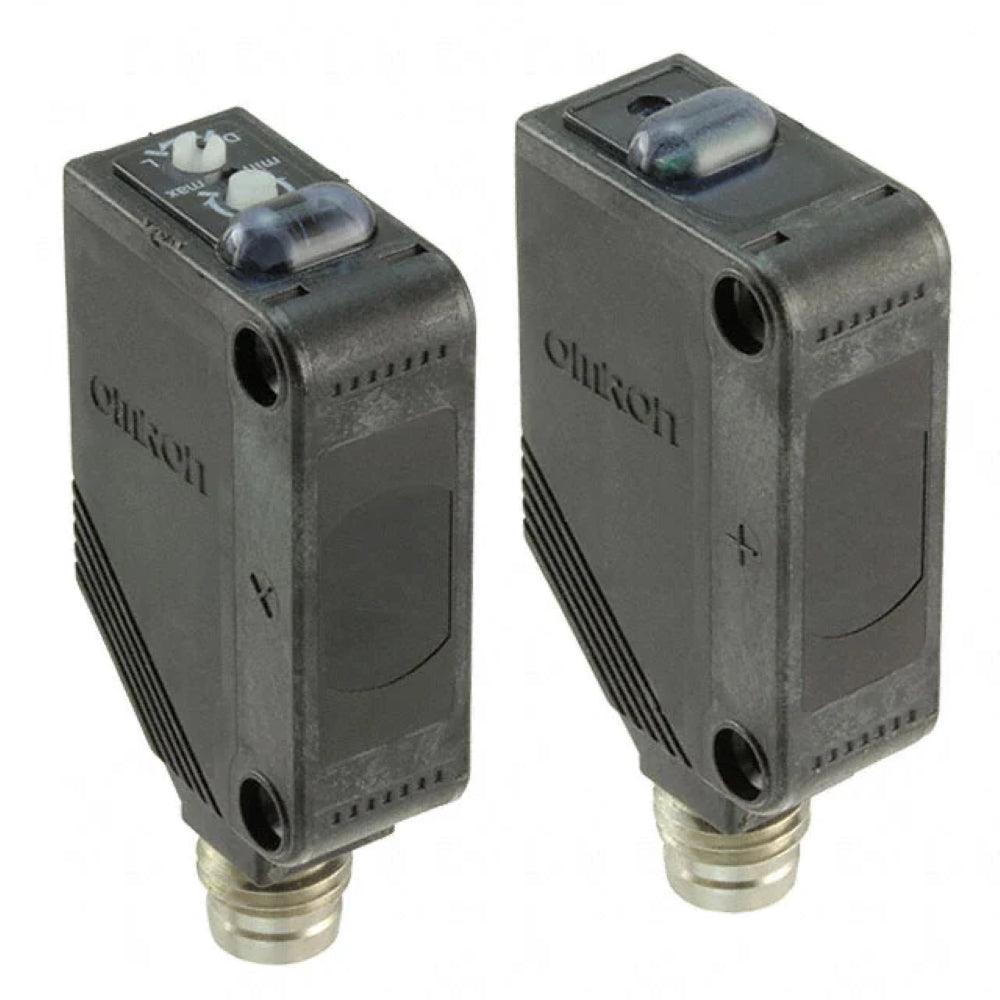

E3Z-T86-IL3 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-T86-IL3

Product type

Photoelectric sensor

Shape

Rectangular

Sensing method

Through-beam

Sensing distance

15 m

Standard sensing object

Opaque object, 12 mm diameter minimum

Directional angle

3°–15°

Output type

PNP open collector

Maximum load voltage

30 V DC

Maximum load current

100 mA

Supply voltage

10–30 V DC

Light source

Infrared LED

Wavelength

870 nm

Output mode

Light ON / Dark ON selectable

IO-Link version

1.1

IO-Link communication

COM3

Baud rate

230.4 kbps

Minimum cycle time

1 ms

Response time

1 ms maximum

Connection

M8, 4-pin connector

Cable

Separate connector cable required

Sensitivity adjustment

Manual adjustment / IO-Link

Housing material

PBT

Lens material

Modified polyarylate

Protection rating

IP67

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Operating humidity

35–85% RH, non-condensing

Storage humidity

35–95% RH, non-condensing

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Current consumption

Emitter: 25 mA max.; receiver: 25 mA max.

Residual output voltage

1 V max. below 10 mA; 2 V max. at 10–100 mA

Insulation resistance

20 MΩ minimum at 500 V DC

Dielectric strength

1,000 V AC for 1 minute

Shock resistance

500 m/s²

Packed weight

Approx. 30 g

Accessories

Instruction manual; mounting bracket sold separately
