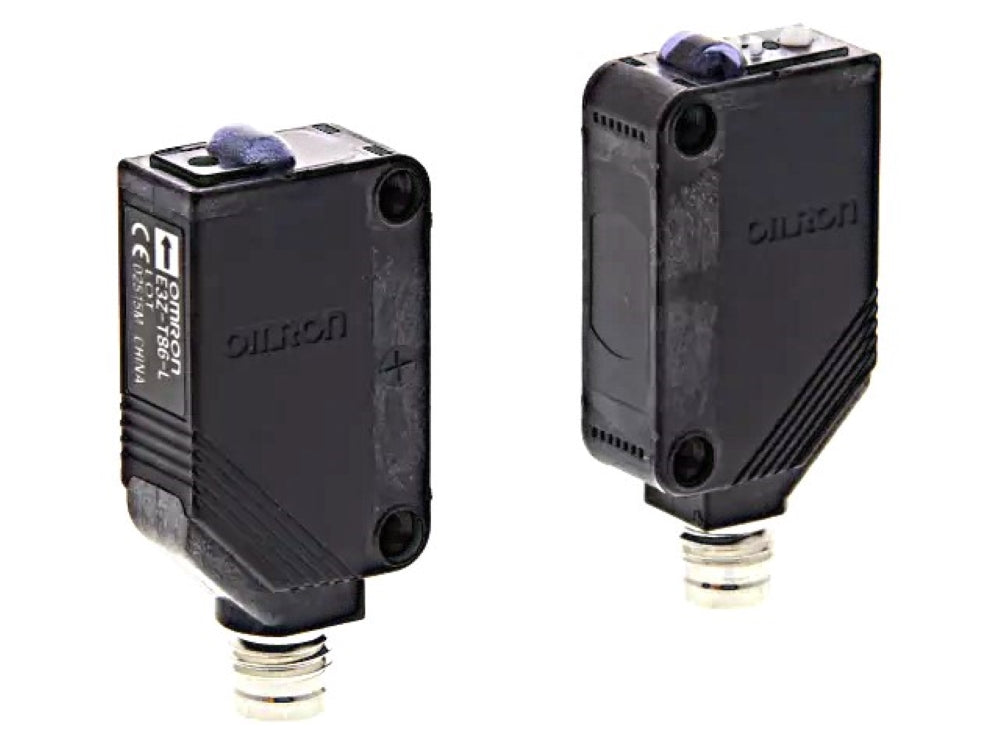

E3Z-T86-IL2 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-T86-IL2

Sensor Type

Photoelectric Sensor

Sensing Method

Through-beam

Sensing Distance

15 m

Output Type

PNP

Output Mode

Light ON / Dark ON selectable

Supply Voltage

10–30 V DC

Maximum Load Current

100 mA

Light Source

Infrared LED, 870 nm

IO-Link

Version 1.1, COM2

Communication Speed

38.4 kbps

Connection

M8 connector

Response Time

1 ms maximum

Protection Rating

IP67

Housing Material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating Temperature

−25°C to +55°C

Operating Humidity

35–85% RH

Shock Resistance

500 m/s²

Current Consumption

25 mA max. per emitter/receiver

Weight

Approx. 30 g packed

Accessories

Instruction manual
