HELIX AUTOMATION SOLUTION

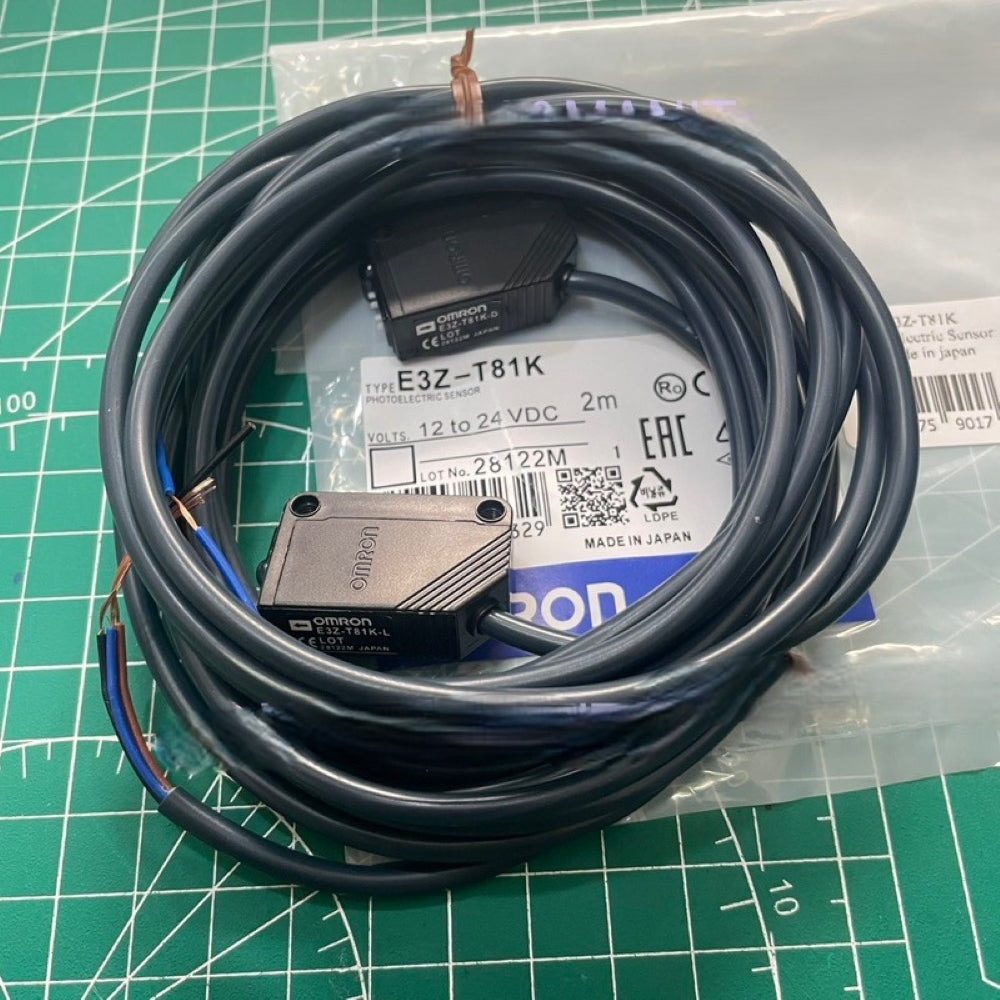

E3Z-T81K Omron Photoelectric Sensor
E3Z-T81K Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-T81K Omron Photoelectric Sensor
| Specification | E3Z-T81K |
|---|---|
| Brand | Omron |
| Model | E3Z-T81K |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Through-Beam |
| Sensing Distance | 15 m |
| Standard Sensing Object | Opaque object, 12 mm dia. min. |
| Output Type | PNP Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| NO / NC | Selectable by Light-ON / Dark-ON |
| Light Source | Infrared LED |
| Wavelength | 870 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | Emitter: 15 mA max.; Receiver: 20 mA max. |
| Control Output | 26.4 VDC max., 100 mA max. |
| Response Time | 1 ms max. |
| Connection | Pre-wired cable |
| Standard Cable Length | 2 m |
| Protection Rating | IP67 |
| Oil Resistance | Yes |
| Shape | Square |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Directional Angle | Emitter & Receiver: 3–15° |
| Operating Temperature | -25 to +55°C |
| Storage Temperature | -40 to +70°C |
| Operating Humidity | 35–85% RH |
| Sensitivity Adjustment | Not applicable to through-beam type |
| Indicator | Orange operation/stability; emitter has power indicator |
| Protection Circuits | Reverse power supply, output short-circuit and reverse output polarity protection |
