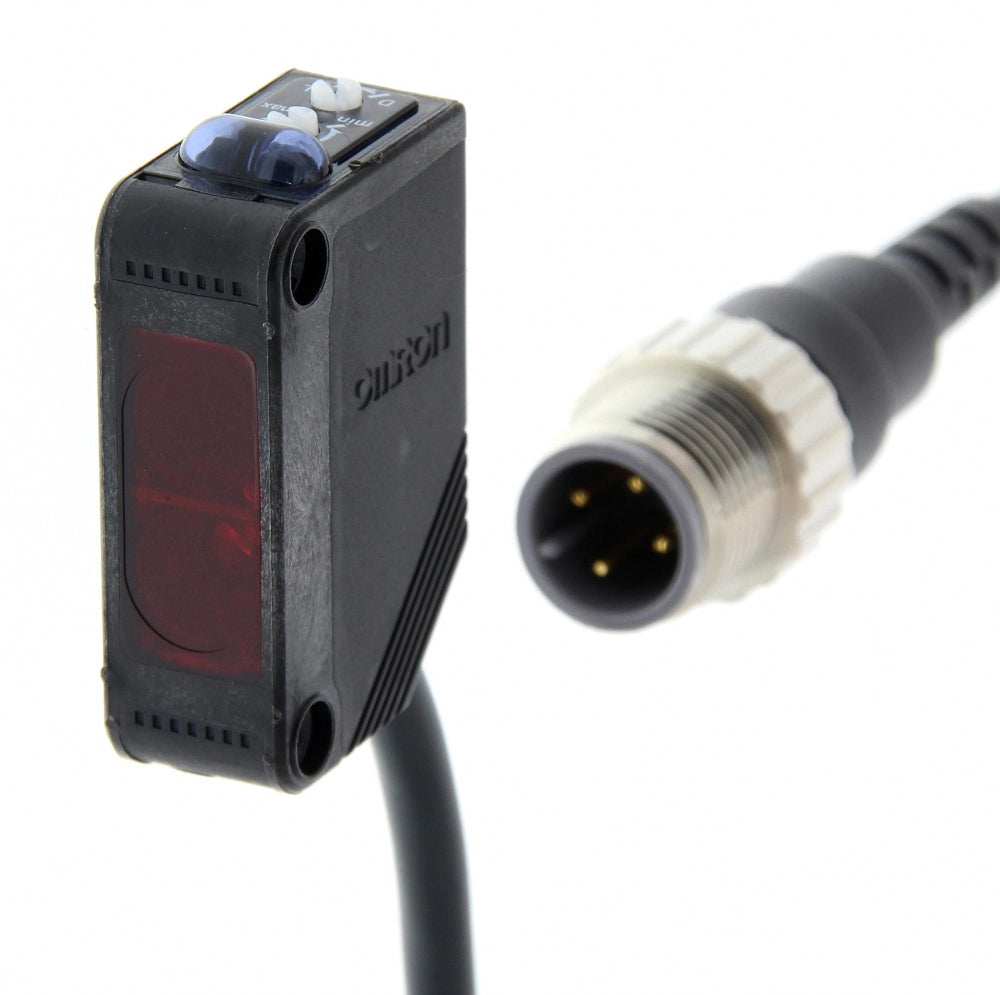

E3Z-T81-UL Omron Photoelectronic Sensor

Sensing Method

Through-Beam

Sensing Distance

15 m

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON Selectable

Light Source

Infrared LED, 870 nm

Supply Voltage

12–24 V DC ±10%

Maximum Load Current

100 mA

Response Time

1 ms max.

Standard Sensing Object

Opaque object, 12 mm diameter minimum

Connection Type

Pre-wired cable

Cable Length

2 m standard

Protection Rating

IP67

Housing Material

PBT

Operating Temperature

-25°C to +55°C

Current Consumption

35 mA max.

Weight

Approx. 120 g, packed

Shape

Rectangular

Frequency

Not specified in the standard datasheet
