HELIX AUTOMATION SOLUTION

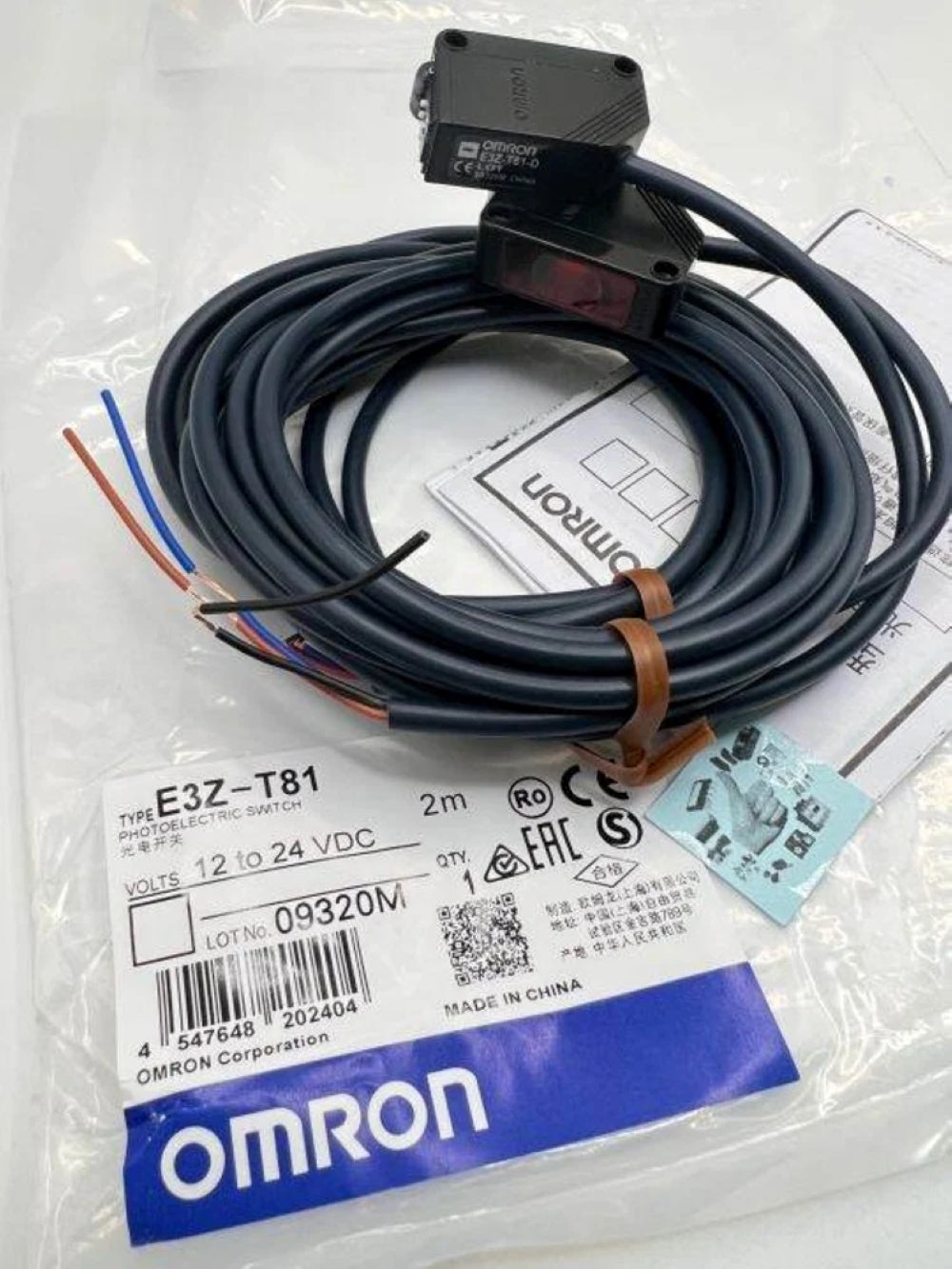

E3Z-T81 Omron Photoelectric Sensor
E3Z-T81 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-T81 Omron Photoelectric Sensor
| Specification | E3Z-T81 |
|---|---|
| Brand | Omron |
| Model | E3Z-T81 |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Through-beam |
| Shape | Cuboid / Rectangular |
| Sensing Distance | 15 m |
| Output Type | PNP |
| NO / NC | Light-ON / Dark-ON selectable |
| Light Source | Infrared LED, 870 nm |
| Supply Voltage | 12–24 VDC |
| Connection | Pre-wired cable |
| Cable Length | 2 m standard |
| Response Time | 1 ms max. |
| Standard Sensing Object | Opaque, 12 mm dia. minimum |
| Protection Rating | IP67 |
| Housing Material | PBT |
| Dimensions (W × H × D) | 10.8 × 31 × 20 mm |
| Current Consumption | 35 mA max. (emitter 15 mA, receiver 20 mA) |
| Directional Angle | 3–15° |
| Operation Mode | Light-ON / Dark-ON |
