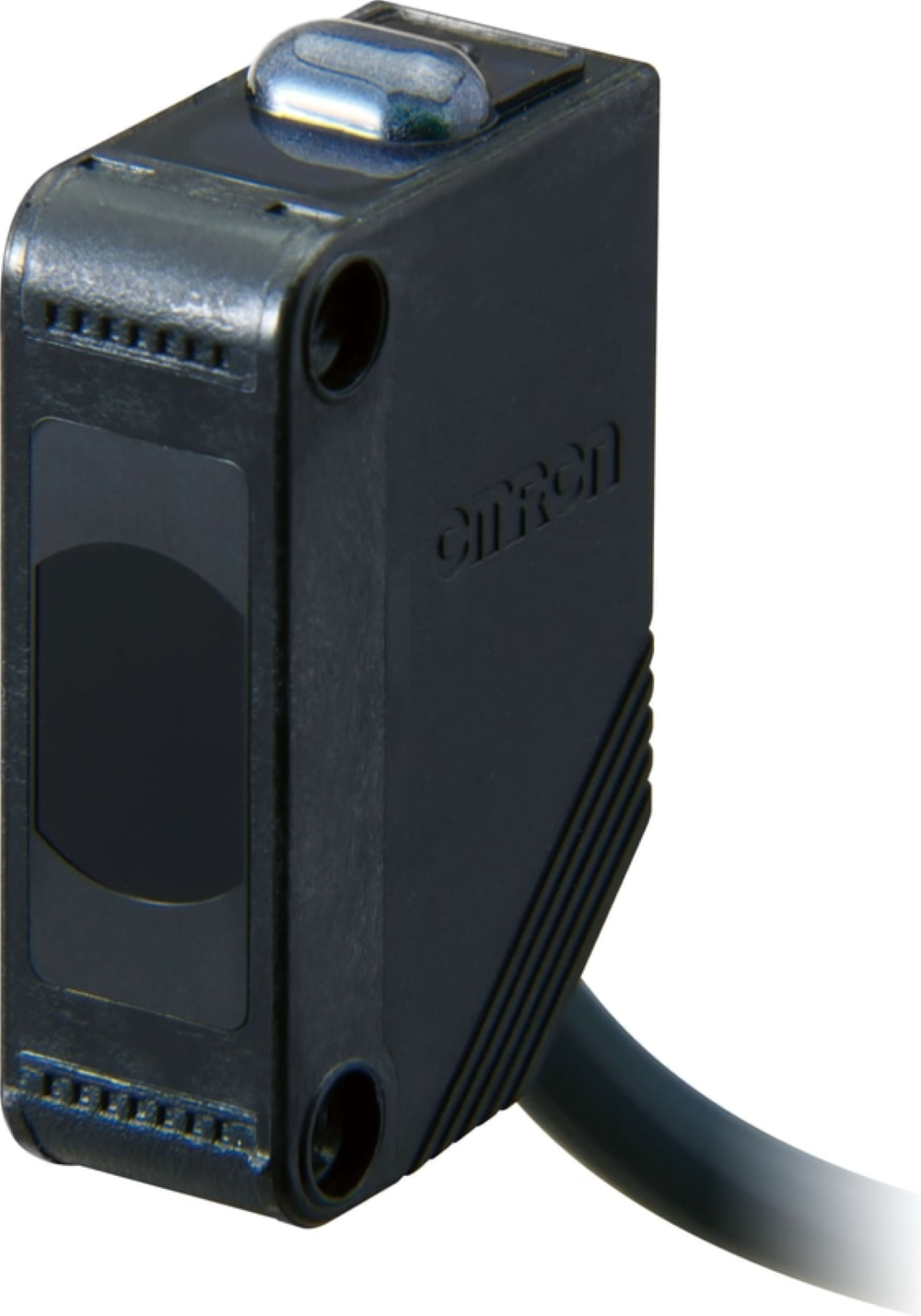

E3Z-T81-IL3 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-T81-IL3 2M

Sensing method

Through-beam

Sensing distance

15 m

Standard sensing object

Opaque object, 12 mm diameter minimum

Output type

PNP open collector

Output current

100 mA maximum

Supply voltage

10–30 V DC

Light source

Infrared LED

Wavelength

870 nm

IO-Link version

1.1

IO-Link baud rate

COM3, 230.4 kbps

Minimum cycle time

1 ms

Response time

1 ms maximum

Operation mode

Light ON / Dark ON selectable

Cable length

2 m

Connection

Pre-wired cable

Housing material

PBT

Protection rating

IP67

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Emitter current consumption

25 mA maximum

Receiver current consumption

25 mA maximum

Protective circuits

Output short-circuit, output reverse-polarity and power-supply reverse-polarity protection
