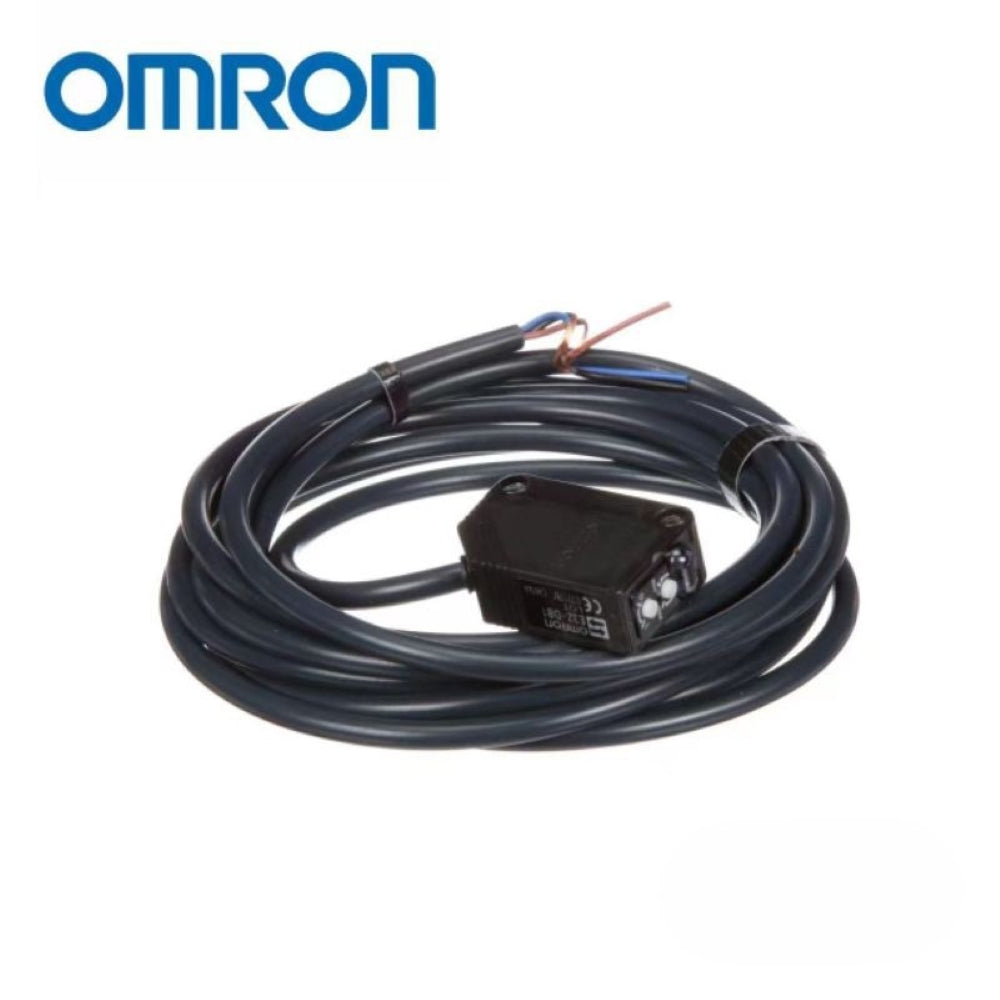

E3Z-T81-IL2 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-T81-IL2 2M

Product type

Photoelectric sensor

Sensing method

Through-beam

Sensing distance

15 m

Minimum standard sensing object

Opaque object, 12 mm diameter

Output type

PNP open collector

Output mode

Light ON / Dark ON selectable

Supply voltage

10–30 V DC

Maximum load voltage

30 V DC

Maximum load current

100 mA

Light source

Infrared LED

Wavelength

870 nm

IO-Link version

1.1

IO-Link baud rate

COM2, 38.4 kbps

Minimum communication cycle time

2.3 ms

Cable length

2 m

Connection

Pre-wired cable

Housing material

PBT plastic

Protection rating

IP67

Operating temperature

−25°C to +55°C

Shape

Compact rectangular

Sensitivity adjustment

Adjustment control / IO-Link configuration

Protective circuits

Reverse-polarity and output short-circuit protection
