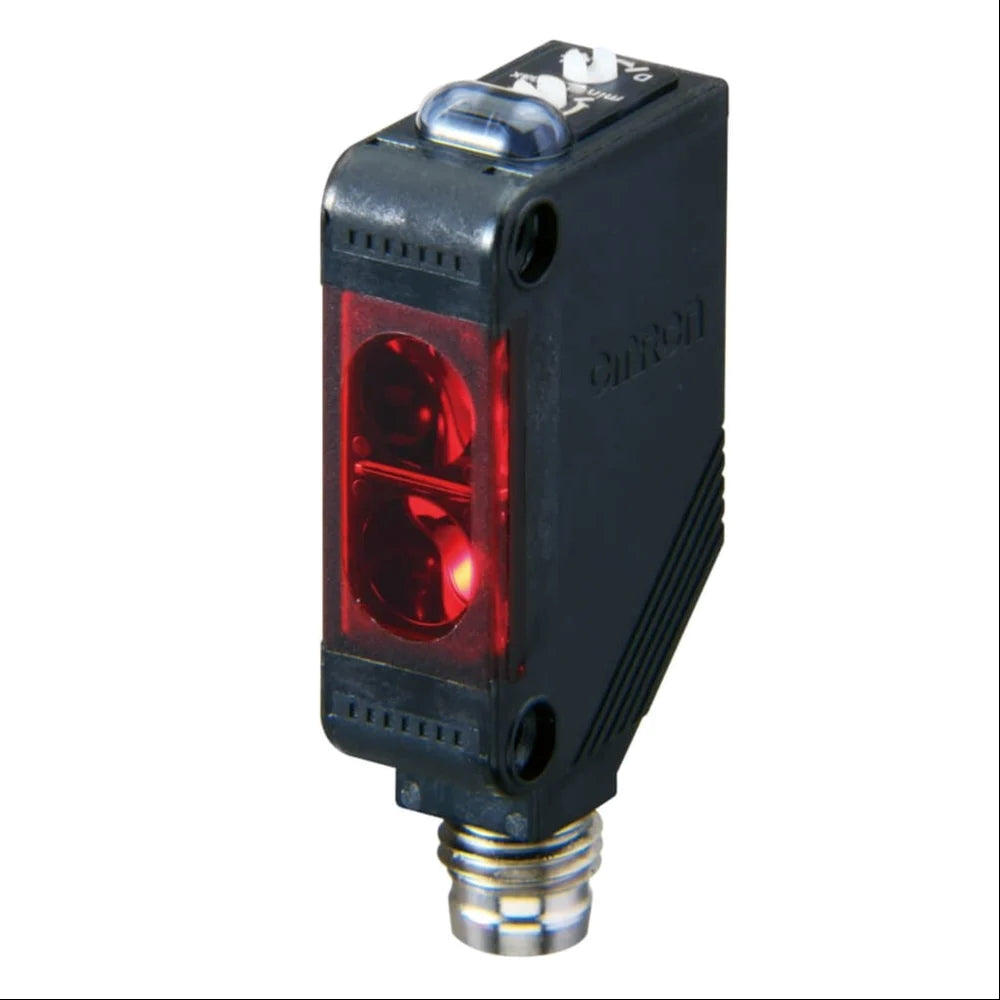

E3Z-T67 Omron Photoelectric Sensor
E3Z-T67 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-T67 Omron Photoelectric Sensor
Technical specifications
| Brand | Omron |
| Model | E3Z-T67 |
| Sensor type | Photoelectric sensor |
| Sensing method | Through-beam |
| Shape | Rectangular / Cuboid |
| Sensing distance | 30 m |
| Output type | NPN open collector |
| NO / NC | Light-ON / Dark-ON selectable |
| Light source | Infrared LED, 870 nm |
| Supply voltage | 12–24 V DC ±10% |
| Maximum load current | 100 mA |
| Response time | 2 ms maximum |
| Standard sensing object | Opaque object, minimum 12 mm diameter |
| Connection | M8, 4-pin connector |
| Protection rating | IP67 |
| Housing material | PBT plastic |
| Dimensions (W × H × D) | 10.8 × 31 × 20 mm |
| Operating temperature | -40°C to +55°C |
| Switching frequency | Not specified in the cited datasheet |
