HELIX AUTOMATION SOLUTION

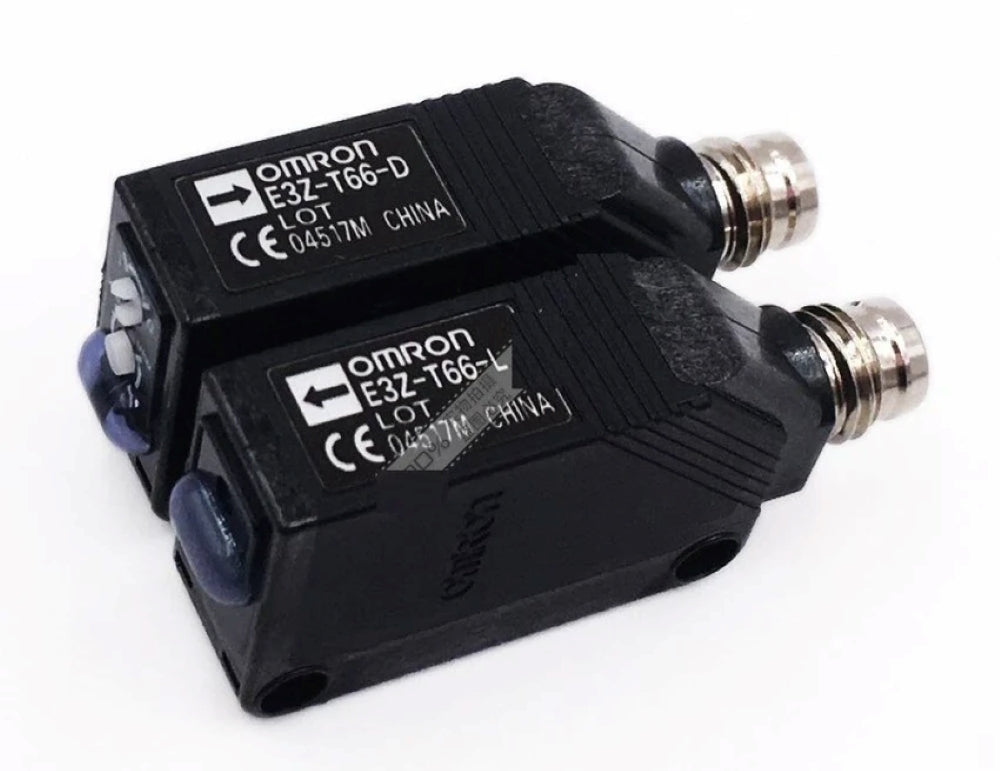

E3Z-T66 Omron Photoelectric Sensor
E3Z-T66 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-T66 Omron Photoelectric Sensor
| Specification | E3Z-T66 |
|---|---|
| Brand | Omron |
| Model | E3Z-T66 |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Through-beam |
| Sensing Distance | 15 m |
| Output Type | NPN |
| Output Mode | Light-ON / Dark-ON selectable |
| Light Source | Infrared LED |
| Wavelength | 870 nm |
| Connection | M8, 4-pin connector |
| Supply Voltage | 12 to 24 VDC ±10% |
| Control Output | 100 mA max. |
| Response Time | 1 ms max. |
| Standard Detectable Object | Opaque object, 12 mm dia. min. |
| IP Rating | IP67 |
| Housing Material | PBT |
| Shape | Rectangular / Cuboid |
| Dimensions | Approx. 10.8 × 31 × 20 mm |
| Ambient Temperature | -40 to +55°C for E3Z-T66 |
| Ambient Humidity | 35 to 85% RH |
| Sensitivity Adjustment | One-turn adjuster |
| Operation Indicator | Orange |
| Stability Indicator | Green |
