HELIX AUTOMATION SOLUTION

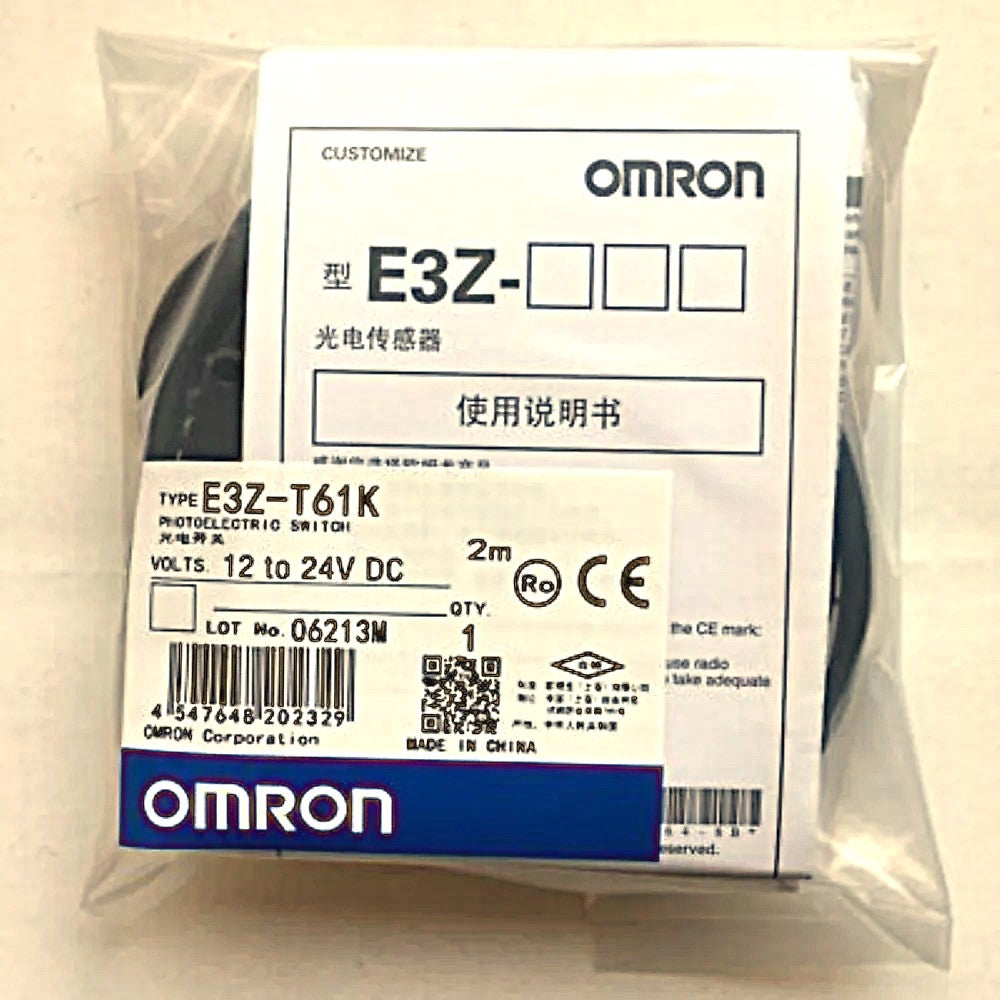

E3Z-T61K Omron Photoelectric Sensor
E3Z-T61K Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-T61K Omron Photoelectric Sensor
| Parameter | Specification |
|---|---|
| Brand | Omron |
| Model | E3Z-T61K |
| Product Type | Photoelectric Sensor |
| Shape | Square / Rectangular |
| Sensing Method | Through-Beam |
| Sensing Distance | 15 m |
| Standard Sensing Object | Opaque object, 12 mm dia. min. |
| Output Type | NPN Open Collector |
| Operation Mode | Light-ON / Dark-ON selectable |
| Supply Voltage | 12 to 24 VDC ±10% |
| Emitter Current Consumption | 15 mA max. |
| Receiver Current Consumption | 20 mA max. |
| Load Voltage | 26.4 VDC max. |
| Load Current | 100 mA max. |
| Light Source | Infrared LED |
| Wavelength | 870 nm |
| Directional Angle | Emitter and Receiver: 3 to 15° |
| Response Time | 1 ms max. operate/reset |
| Connection | Pre-wired cable |
| Cable Length | 2 m standard |
| Protection Rating | IP67 |
| Oil Resistance | Oil-resistant type |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Ambient Temperature | -25 to +55°C |
| Ambient Humidity | 35 to 85% RH |
| Sensitivity Adjustment | Not applicable |
| Dimensions | E3Z compact rectangular body |
