HELIX AUTOMATION SOLUTION

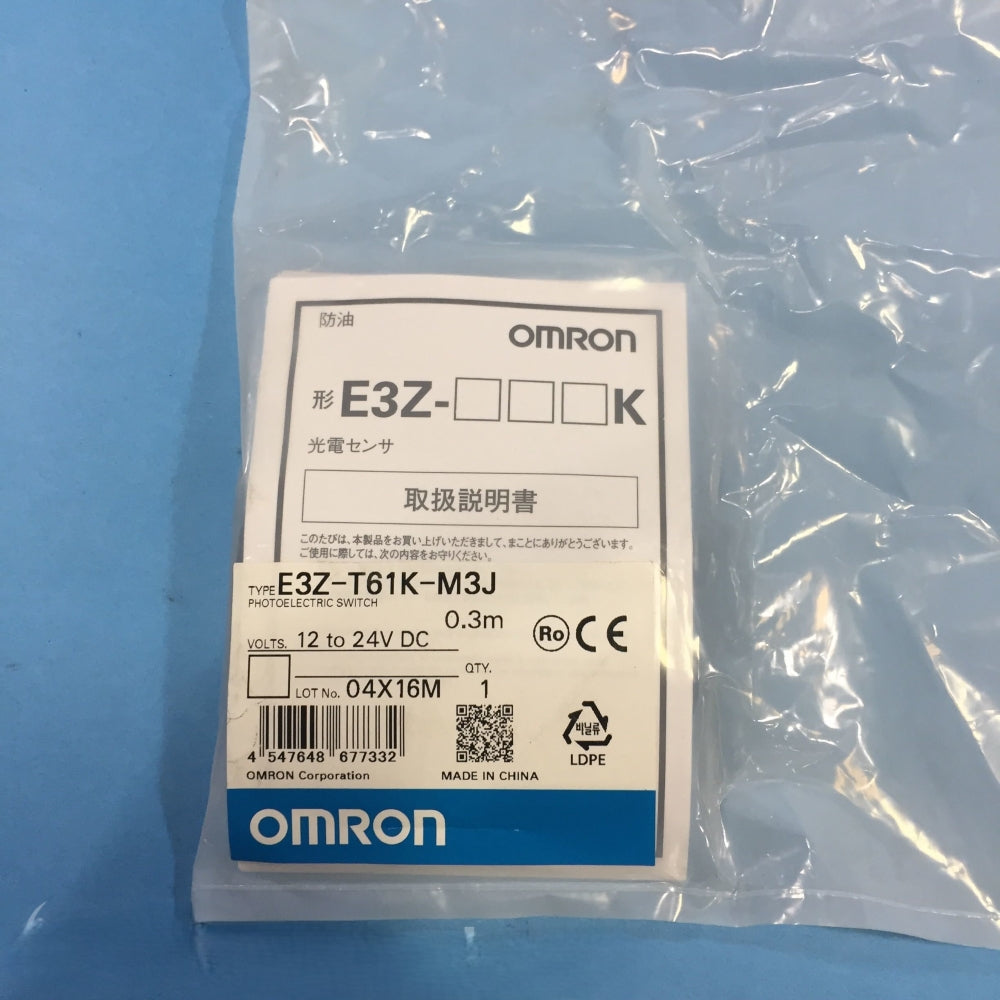

E3Z-T61K-M3J Omron Photoelectric Sensor
E3Z-T61K-M3J Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-T61K-M3J Omron Photoelectric Sensor
| Parameter | Specification |
|---|---|
| Model | E3Z-T61K-M3J |
| Brand | Omron |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Through-beam |
| Sensor Type | Emitter + Receiver set |
| Sensing Distance | 15 m |
| Output Type | NPN Open Collector |
| Operation Mode | Light-ON / Dark-ON selectable |
| Standard Sensing Object | Opaque object, 12 mm diameter minimum |
| Light Source | Infrared LED |
| Wavelength | 870 nm |
| Supply Voltage | 12 to 24 VDC plus or minus 10 percent |
| Current Consumption | Emitter 15 mA max, Receiver 20 mA max |
| Control Output | 26.4 VDC max, 100 mA max |
| Response Time | 1 ms max |
| Connection | M8 pre-wired connector |
| Cable Length | 0.3 m |
| Connector | M8 |
| Protection Rating | IP67 |
| Oil Resistance | Yes |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Ambient Temperature | -25 to 55 C |
| Ambient Humidity | 35 to 85 percent RH |
| Directional Angle | Emitter 3 to 15 degrees, Receiver 3 to 15 degrees |
| Sensitivity Adjustment | One-turn adjuster |
| Switching Frequency | Not separately specified by Omron; response time is 1 ms max |
| Shape | Square |
