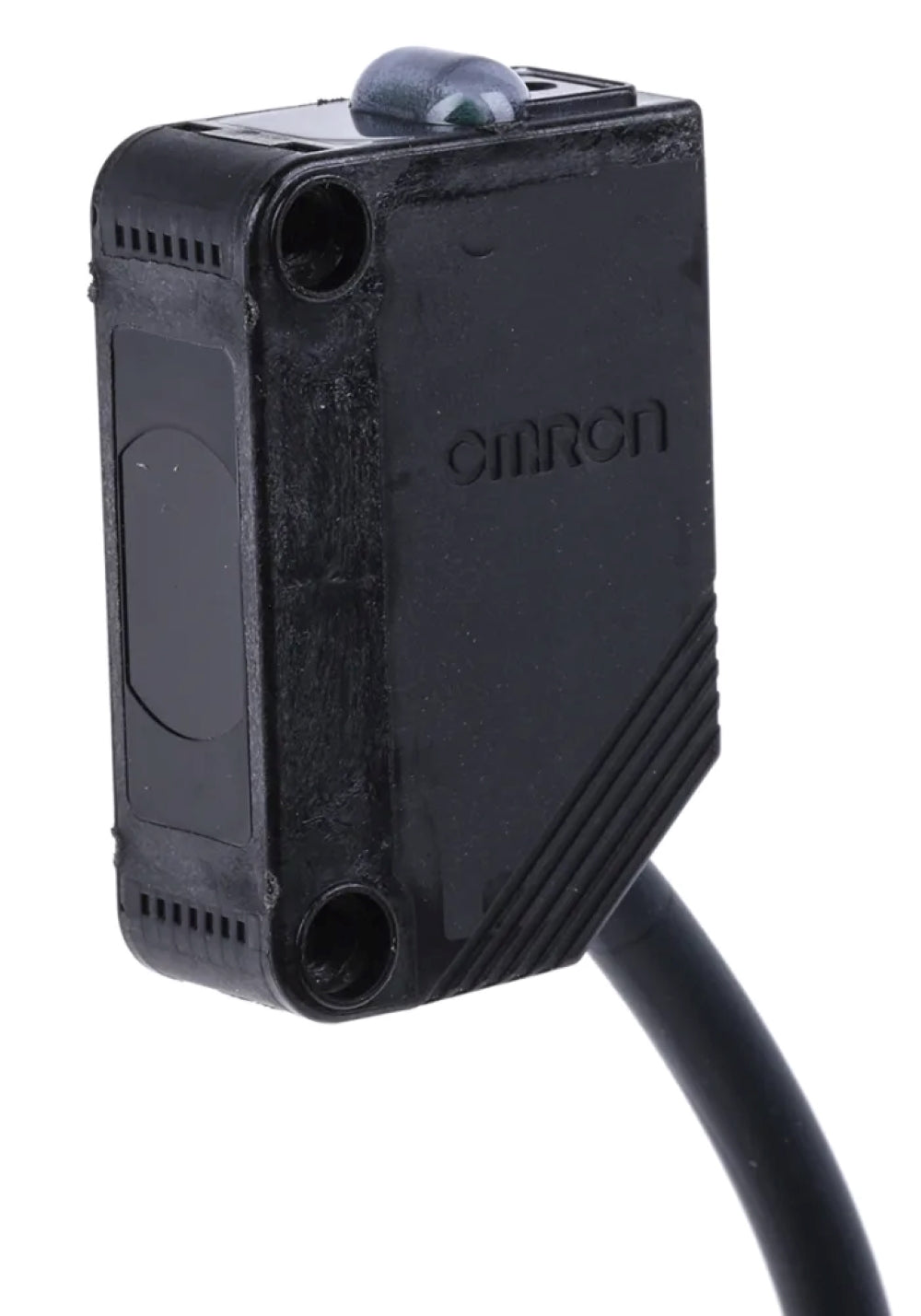

E3Z-T61-UL Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-T61-UL

Sensor Type

Through-Beam Photoelectric Sensor

Sensing Distance

15 m

Output Type

NPN Open Collector

Light Source

Infrared LED, 870 nm

Supply Voltage

12–24 V DC

Maximum Load Current

100 mA

Operation Mode

Light-ON / Dark-ON selectable

Response Time

1 ms max.

Connection

Pre-wired cable

Cable Length

2 m

Protection Rating

IP67

Housing Material

PBT

Operating Temperature

−25°C to +55°C

Standard Detectable Object

Opaque object, 12 mm diameter minimum
