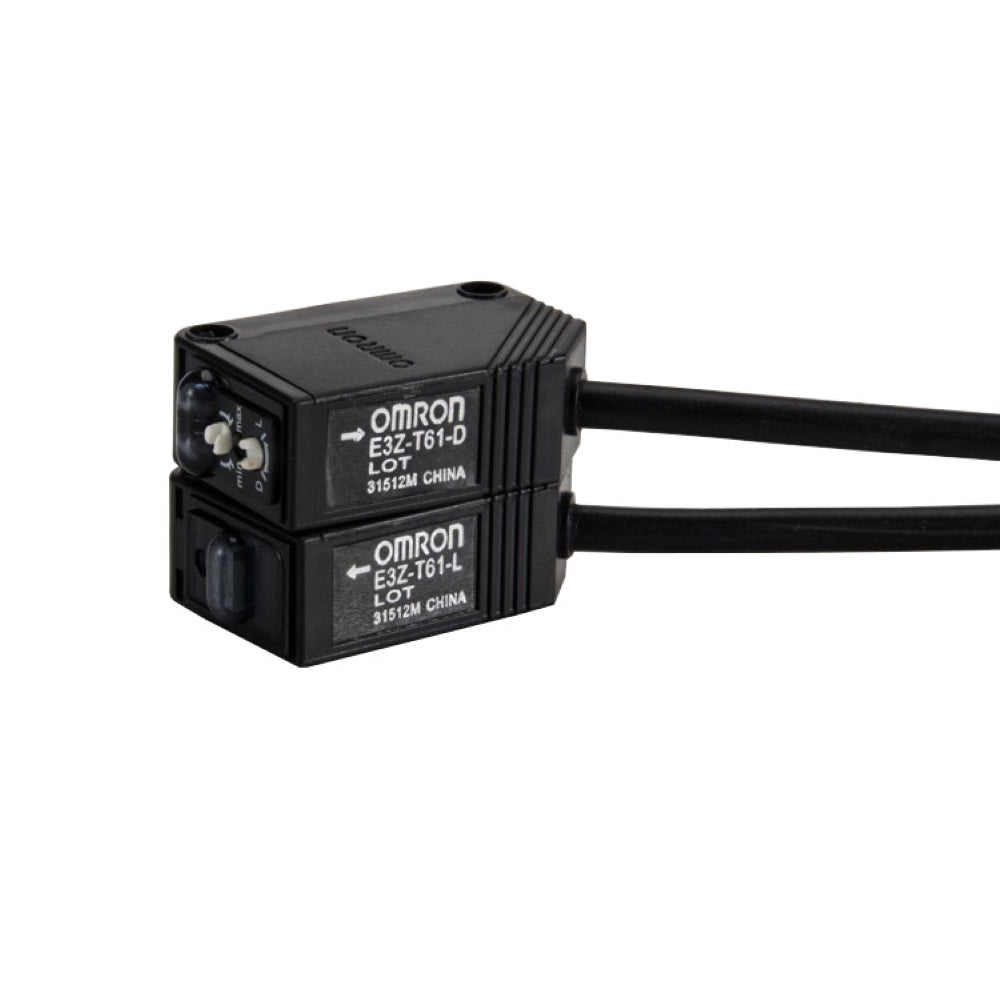

E3Z-T61 OMRON PHOTOELECTRIC SENSOR
The Omron E3Z-T61 is a compact, through-beam photoelectric sensor featuring a built-in amplifier and a 15-meter sensing range
Key Specifications
Sensor Type: Through-beam (optical, includes emitter and receiver)
Sensing Distance: 15 meters
Light Source: Infrared LED
Output Type: NPN open-collector (Light-ON / Dark-ON selectable)
Operating Voltage: 12 to 24 VDC
Response Time: 1 ms max
Max Load Current: 100 mA
Connection Type: Pre-wired 2-meter cable
IP Rating: IP67 (dust and waterproof)
Operating Temperature: -25°C to +55°C
Housing Material: PBT (Polybutylene Terephthalate) plastic
Dimensions: 10.8 mm (width) × 20 mm (depth) × 31 mm (height)
