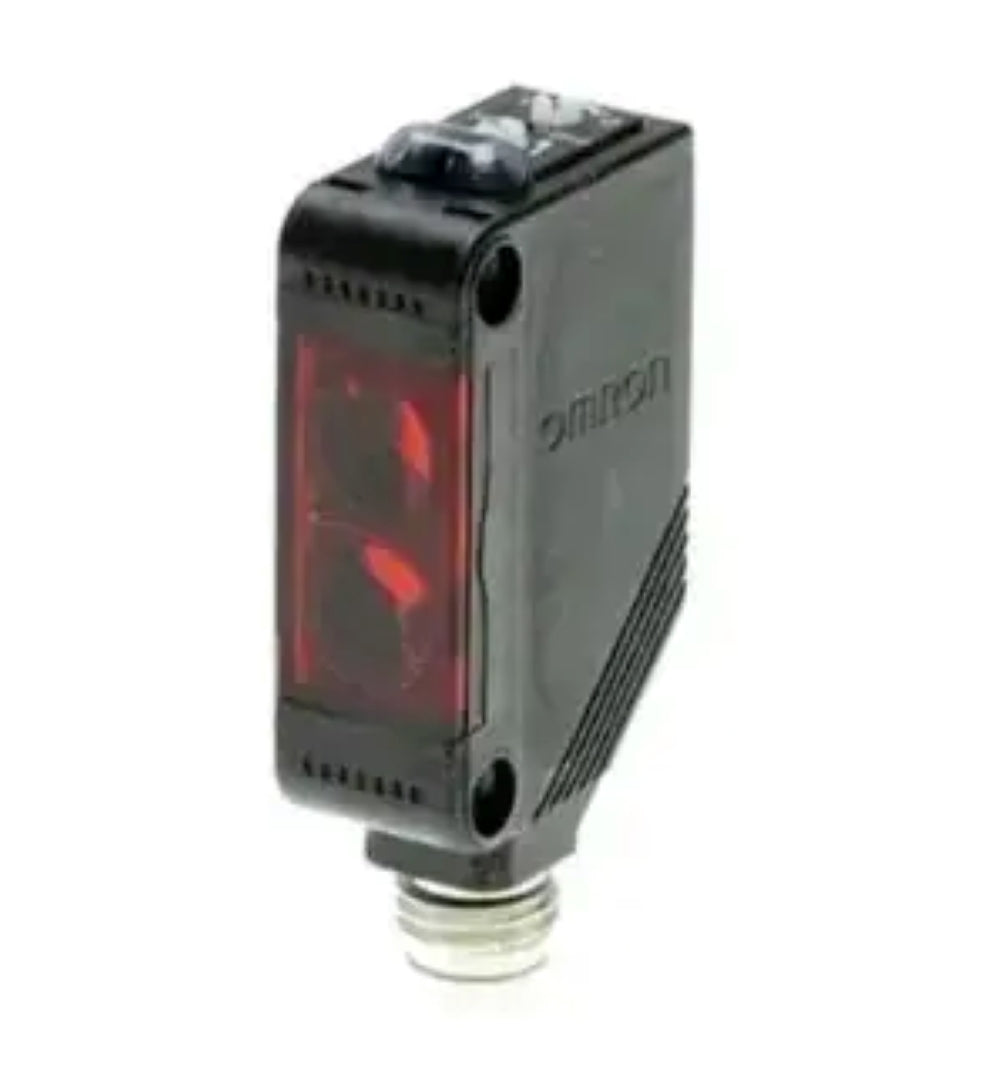

E3Z-R86-UL Omron Photoelectric Sensor

Model

E3Z-R86-UL

Brand

Omron

Sensing Method

Retro-reflective with MSR

Sensing Distance

3 m with E39-R1; 4 m with E39-R1S

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON Selectable

Light Source

Red LED, 660 nm

Supply Voltage

12–24 V DC ±10%

Maximum Load Current

100 mA

Maximum Load Voltage

26.4 V DC

Response Time

1 ms max.

Standard Sensing Object

Opaque object, 75 mm diameter minimum

Connection Type

M8, 4-pin connector

Protection Rating

IP67

Housing Material

PBT

Dimensions

10.8 × 31 × 20 mm

Current Consumption

30 mA max.

Operating Temperature

-40°C to +55°C

Weight

Approx. 20 g, packed

Shape

Rectangular

Frequency

Not specified in the standard datasheet
