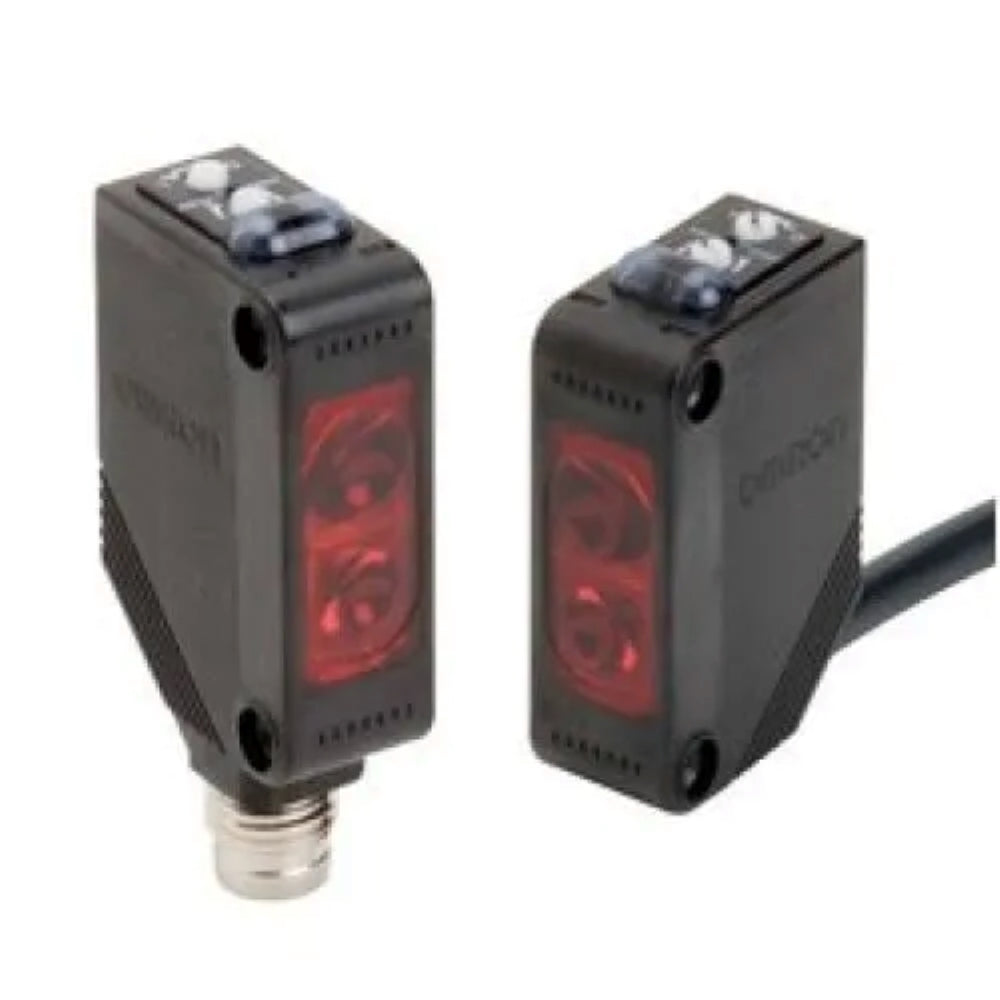

E3Z-R86-IL3 Omron Photoelectric Sensor

Model number

E3Z-R86-IL3

Sensing method

Retro-reflective

Sensing distance

4 m with E39-R1S; 3 m with E39-R1

Minimum sensing distance

100 mm

Standard detectable object

Opaque object, 75 mm diameter minimum

Light source

Red LED, 660 nm

Output type

PNP open collector + IO-Link

Output operation

Light-ON / Dark-ON selectable

Supply voltage

10–30 V DC

Current consumption

30 mA maximum

Maximum load current

100 mA

Response time

1 ms maximum

IO-Link version

1.1

IO-Link communication

COM3, 230.4 kbps

Minimum cycle time

1 ms

Connector

M8, 4-pin

Housing material

PBT plastic

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−25°C to +55°C

Sensitivity adjustment

Manual adjustment / IO-Link

Special feature

MSR function, mutual interference prevention
