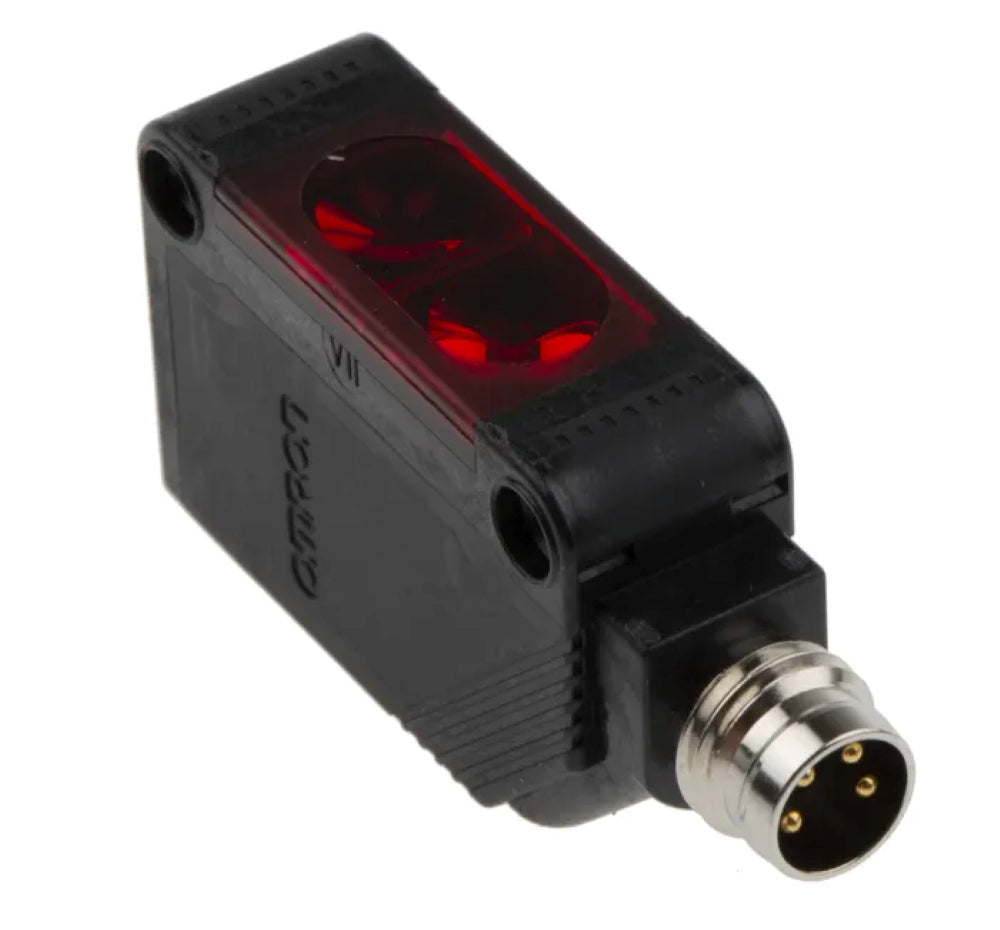

E3Z-R86-IL2 Omron Photoelectric Sensor

Sensing distance

100 mm to 4 m with E39-R1S reflector; 100 mm to 3 m with E39-R1

Minimum sensing object

Opaque object, 75 mm diameter

Sensing method

Retro-reflective with MSR

Light source

Red LED, 660 nm

Supply voltage

10–30 V DC

Output type

PNP open collector

Maximum load current

100 mA

Maximum load voltage

30 V DC

Output mode

Light ON / Dark ON selectable

IO-Link version

1.1

Communication speed

COM2, 38.4 kbps

Minimum cycle time

2.3 ms

Response time

1 ms maximum

Current consumption

30 mA maximum

Connection type

M8, 4-pin connector

Cable

Connector cable required separately

Housing material

PBT

Lens material

Modified polyarylate

Protection rating

IP67

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Operating humidity

35–85% RH, non-condensing

Storage humidity

35–95% RH, non-condensing

Insulation resistance

20 MΩ minimum at 500 V DC

Dielectric strength

1,000 V AC for 1 minute

Shock resistance

500 m/s²

Weight (packed)

Approx. 20 g

Accessories

Instruction manual; reflector and mounting bracket sold separately
