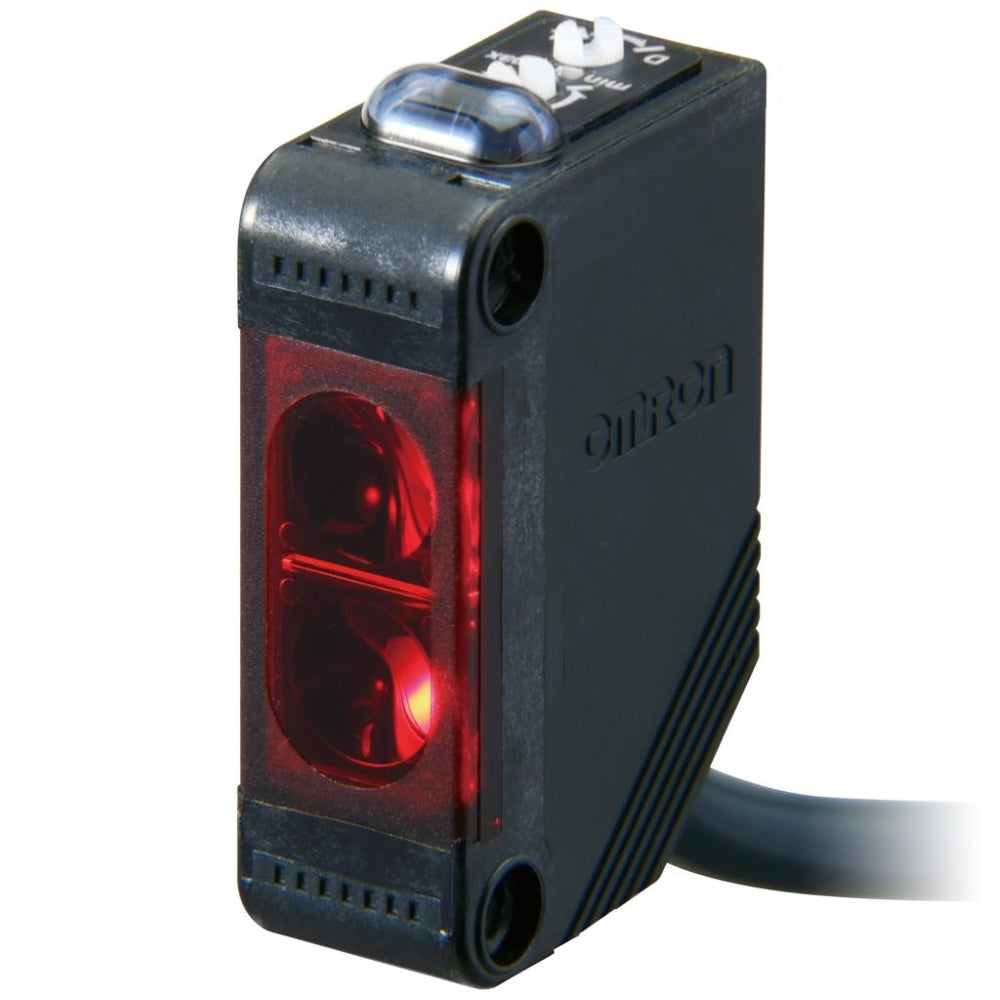

E3Z-R81K Omron Photoelectric Sensor
E3Z-R81K Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-R81K Omron Photoelectric Sensor
| Specification | E3Z-R81K |
|---|---|
| Brand | Omron |
| Model | E3Z-R81K |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Retro-Reflective with MSR |
| Output Type | PNP Open Collector |
| Sensing Distance | 3 m with E39-R1S reflector |
| Minimum Distance | 150 mm with E39-R1S |
| Alternative Sensing Distance | 2 m with E39-R1 reflector |
| Light Source | Red LED |
| Wavelength | 660 nm |
| Output Mode | Light-ON / Dark-ON selectable |
| NO / NC | Selectable through Light-ON / Dark-ON |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Control Output | PNP open collector, 100 mA max. |
| Response Time | 1 ms max. |
| Connection | Pre-wired cable |
| Cable Length | 2 m standard |
| Protection Rating | IP67 |
| Oil Resistance | Yes |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Shape | Square / Rectangular |
| Directional Angle | 2–10° |
| Operating Temperature | -25 to +55°C |
| Storage Temperature | -40 to +70°C |
| Reflector | E39-R1S recommended for 3 m sensing |
| MSR Function | Yes |
| Weight | Approx. 65 g packed |
