HELIX AUTOMATION SOLUTION

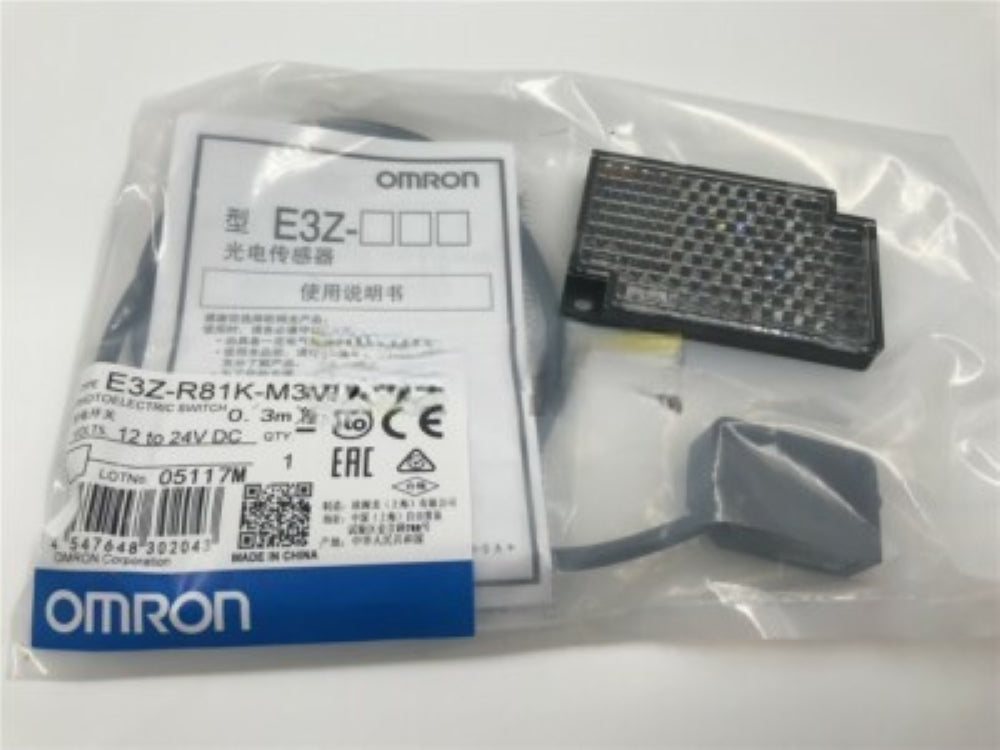

E3Z-R81K-M3J Omron Photoelectric Sensor
E3Z-R81K-M3J Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-R81K-M3J Omron Photoelectric Sensor
| Specification | E3Z-R81K-M3J |
|---|---|
| Brand | Omron |
| Series | E3Z |
| Model | E3Z-R81K-M3J |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Retro-reflective |
| MSR Function | Yes |
| Sensing Distance | 3 m with E39-R1S reflector |
| Minimum Reflector Distance | 150 mm with E39-R1S |
| Light Source | Red LED |
| Light Wavelength | 660 nm |
| Output Type | PNP |
| Output Mode | Light-ON / Dark-ON selectable |
| Supply Voltage | 12–24 VDC ±10% |
| Control Output | 100 mA max. |
| Response Time | 1 ms max. |
| Connection | M8 pre-wired connector |
| Connector | M8, 4-pin |
| Cable Length | 0.3 m |
| Protection Rating | IP67 |
| Housing Material | PBT |
| Shape | Cuboid / rectangular |
| Dimensions | Approx. 10.8 × 31 × 20 mm |
| Sensitivity Adjustment | One-turn adjuster |
| Ambient Temperature | -25 to +55°C; connector version can operate lower depending on model |
| Oil Resistance | Yes |
| Standard Detectable Object | Opaque object, 75 mm dia. min. |
| Differential Travel | 20% max. of setting distance |
| Indicator | Orange operation + green stability indicator |
