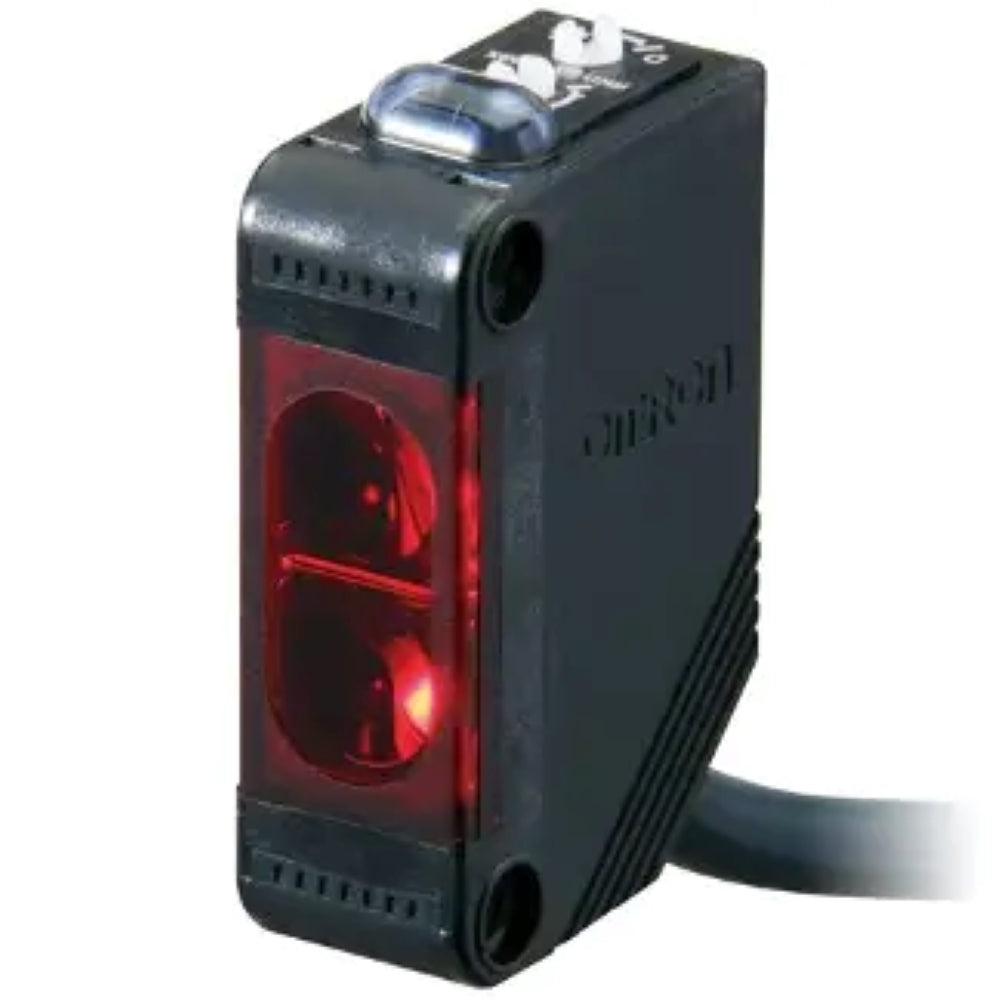

E3Z-R81-IL3 Omron Photoelectric Sensor

Sensing distance

4 m with E39-R1S reflector; 3 m with E39-R1

Minimum sensing distance

100 mm

Standard sensing object

Opaque object, 75 mm diameter minimum

Light source

Red LED, 660 nm

Output type

PNP open collector

Output mode

Light ON / Dark ON selectable

Supply voltage

10–30 V DC

Maximum load current

100 mA

Maximum load voltage

30 V DC

Current consumption

30 mA maximum

IO-Link version

1.1

Communication speed

COM3, 230.4 kbps

Minimum cycle time

1 ms

Response time

1 ms maximum

Connection

Pre-wired cable

Cable length

2 m

Housing material

PBT

Lens material

Modified polyarylate

Protection rating

IP67

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Operating humidity

35–85% RH, non-condensing

Output residual voltage

1 V max. below 10 mA; 2 V max. at 10–100 mA

Protective circuits

Output short-circuit, output reverse-polarity and supply reverse-polarity protection

Packed weight

Approx. 65 g

Reflector

Sold separately
