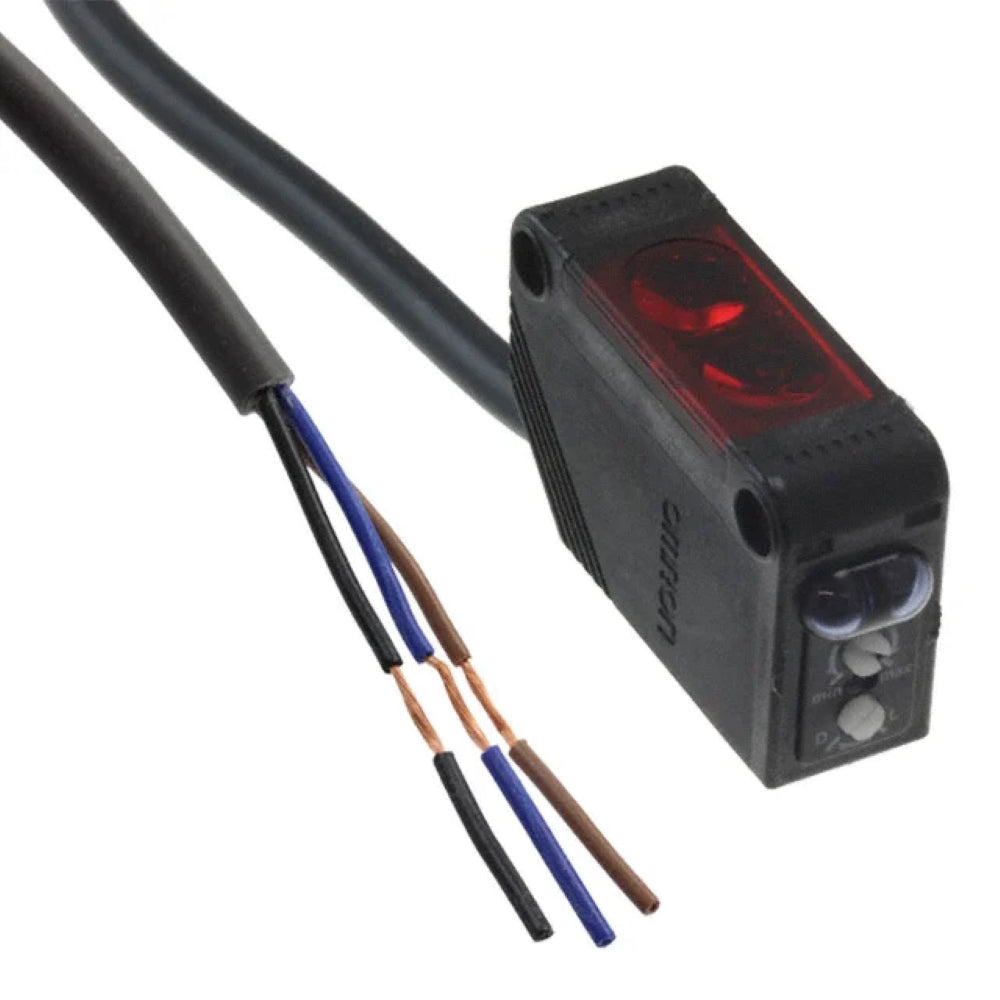

E3Z-R81-IL2 Omron Photoelectric Sensor

Sensing method

Retro-reflective with MSR

Sensing distance

4 m with E39-R1S reflector; 3 m with E39-R1

Standard sensing object

Opaque object, 75 mm diameter minimum

Light source

Red LED, 660 nm

Supply voltage

10–30 V DC

Output type

PNP open collector

Maximum load current

100 mA

Maximum load voltage

30 V DC

Output mode

Light ON / Dark ON selectable

IO-Link version

1.1

Communication speed

COM2, 38.4 kbps

Minimum cycle time

2.3 ms

Response time

1 ms maximum

Cable length

2 m

Connection

Pre-wired cable

Current consumption

30 mA maximum

Protection rating

IP67

Housing material

PBT

Display / lens material

Modified polyarylate

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Operating humidity

35–85% RH

Packed weight

Approx. 65 g

Reflector

Sold separately

NO / NC equivalent

Light ON / Dark ON selectable
