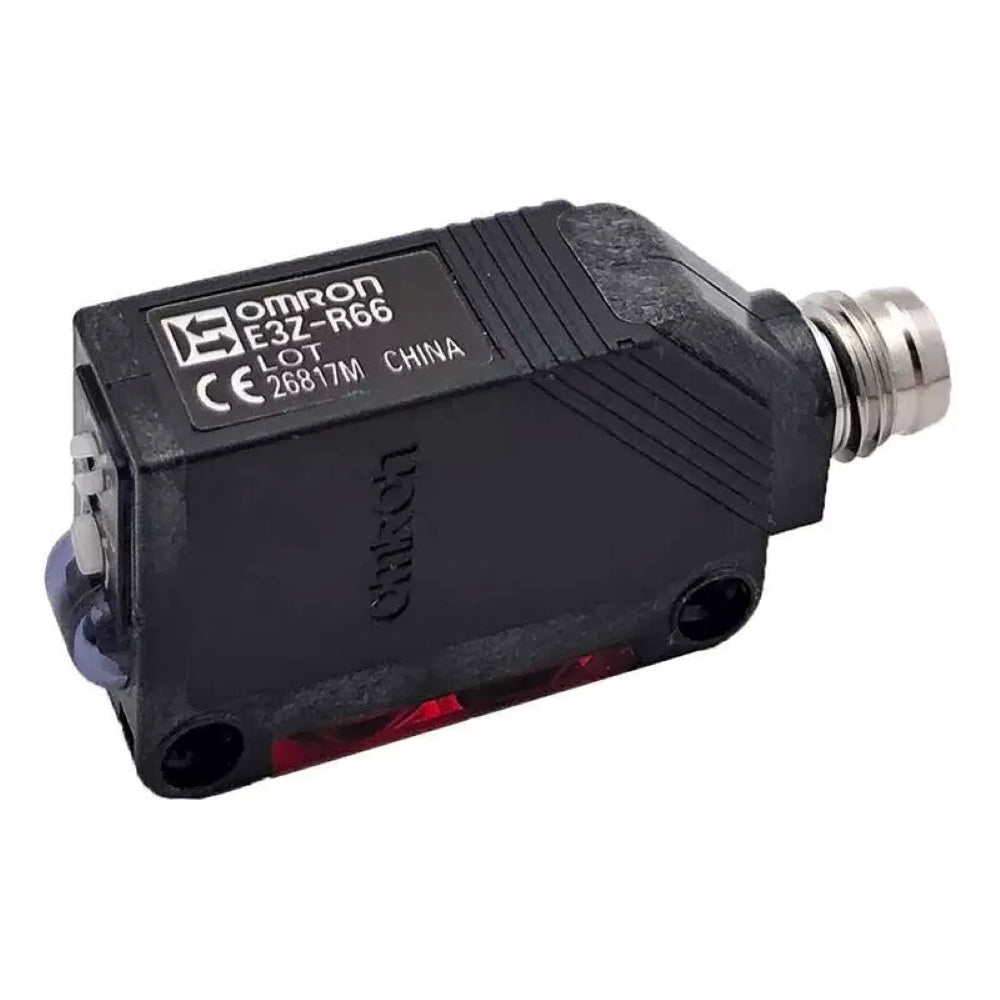

E3Z-R66-UL Omron Photoelectric Sensor

Sensing distance

3 m with E39-R1 reflector; 4 m with E39-R1S reflector

Minimum sensing distance

100 mm

Sensing method

Retro-reflective

Light source

Red LED, 660 nm

Output type

NPN open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

12–24 V DC ±10%

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Response time

1 ms max.

Connection type

M8, 4-pin connector

Protection rating

IP67

Housing material

PBT plastic

Lens material

Methacrylic resin

Dimensions (W × H × D)

Approx. 10.8 × 31 × 20 mm

Operating temperature

−40°C to +55°C

Sensitivity adjustment

Single-turn adjuster

MSR function

Yes

Shape

Rectangular

Packed weight

Approx. 20 g
