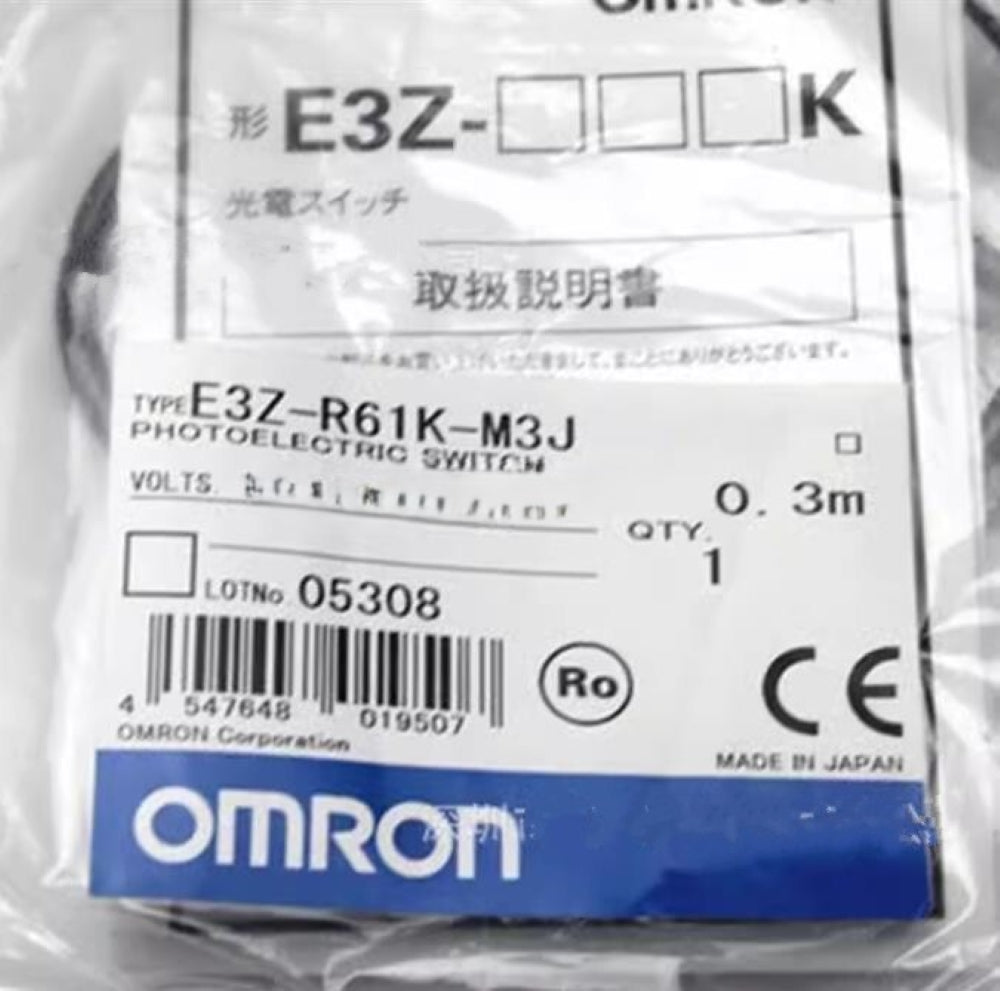

E3Z-R61K-M3J Omron Photoelectric Sensor
E3Z-R61K-M3J Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-R61K-M3J Omron Photoelectric Sensor
| Parameter | Specification |
|---|---|
| Model | E3Z-R61K-M3J |
| Brand | Omron |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Retro-reflective with MSR |
| Shape | Square |
| Output | NPN Open Collector |
| Sensing Distance | 150 mm to 3 m with E39-R1S |
| Sensing Distance | 100 mm to 2 m with E39-R1 |
| Standard Sensing Object | Opaque, 75 mm diameter minimum |
| Light Source | Red LED |
| Wavelength | 660 nm |
| Directional Angle | 2 to 10 degrees |
| Supply Voltage | 12 to 24 VDC plus or minus 10 percent |
| Current Consumption | 30 mA max |
| Control Output | 26.4 VDC max, 100 mA max |
| Response Time | 1 ms max |
| Operation Mode | Light ON / Dark ON selectable |
| Connection | M8 pre-wired connector |
| Cable Length | 0.3 m |
| Protection Rating | IP67 |
| Oil Resistance | Yes, excluding cable and connector |
| Sensitivity Adjustment | Single-turn adjustment |
| Housing Material | PBT |
| Lens Material | Methacrylate resin |
| Operating Temperature | -25 to 55 C |
| Operating Humidity | 35 to 85 percent RH |
| Weight | Approx. 30 g packed |
