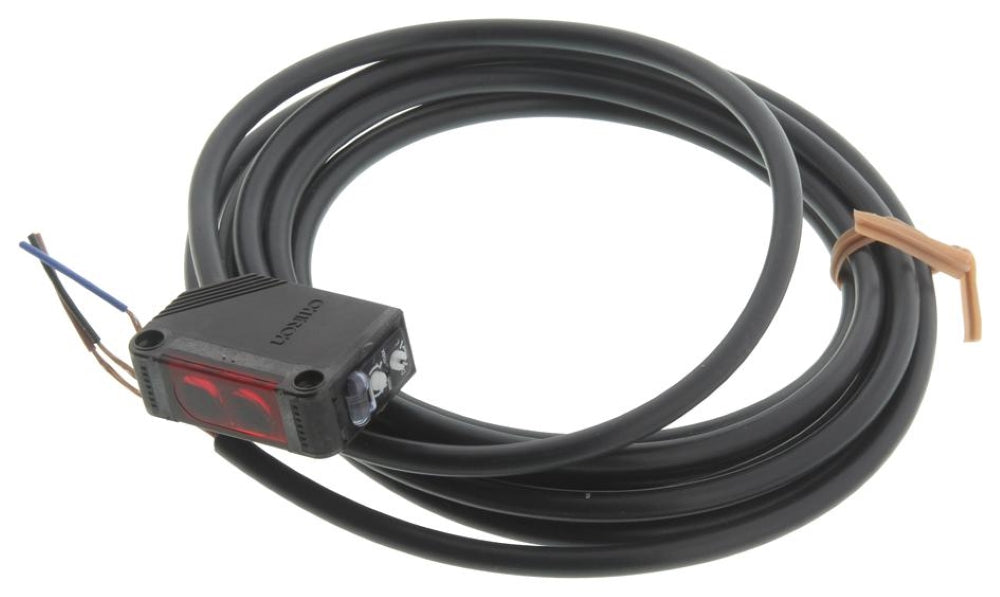

E3Z-R61-UL Omron Photoelectric Sensor

Sensing distance

3 m with E39-R1 reflector; 4 m with E39-R1S reflector

Sensing method

Retro-reflective

Light source

Red LED, 660 nm

Output type

NPN open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

12–24 V DC ±10%

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Response time

1 ms max.

Protection rating

IP67

Cable length

2 m

Cable type

3-core, 4 mm diameter vinyl-insulated cable

Housing material

PBT plastic

Lens material

Methacrylate resin

Operating temperature

−25°C to +55°C

Sensitivity adjustment

Single-turn adjuster

Shape

Rectangular

MSR function

Yes

Weight

Approximately 65 g, packed weight for standard 2 m cable model
