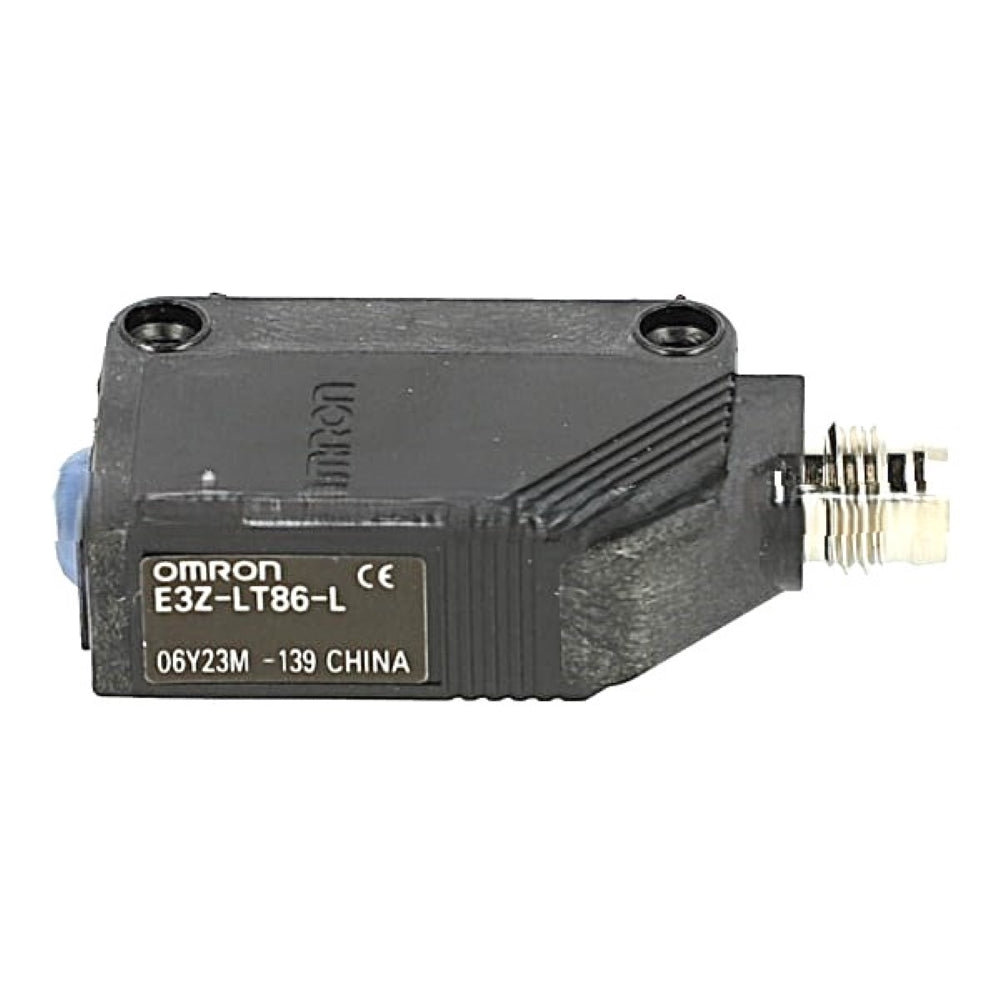

E3Z-LT86-UL Omron Photoelectric Sensor

Model Number

E3Z-LT86-UL

Sensing Method

Through-Beam

Sensing Distance

60 m

Light Source

Red Laser Diode

Wavelength

655 nm

Laser Class

Class 1

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON selectable

Supply Voltage

12–24 V DC

Maximum Load Current

100 mA

Response Time

1 ms maximum

Connection Type

M8, 4-pin connector

Protection Rating

IP67

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Housing Material

PBT

Operating Temperature

-10°C to +55°C

Current Consumption

Emitter: 15 mA max; Receiver: 20 mA max

Standard Sensing Object

Opaque object, 12 mm diameter minimum

Minimum Detectable Object

6 mm diameter at 3 m

Spot Size

5 mm diameter at 3 m
