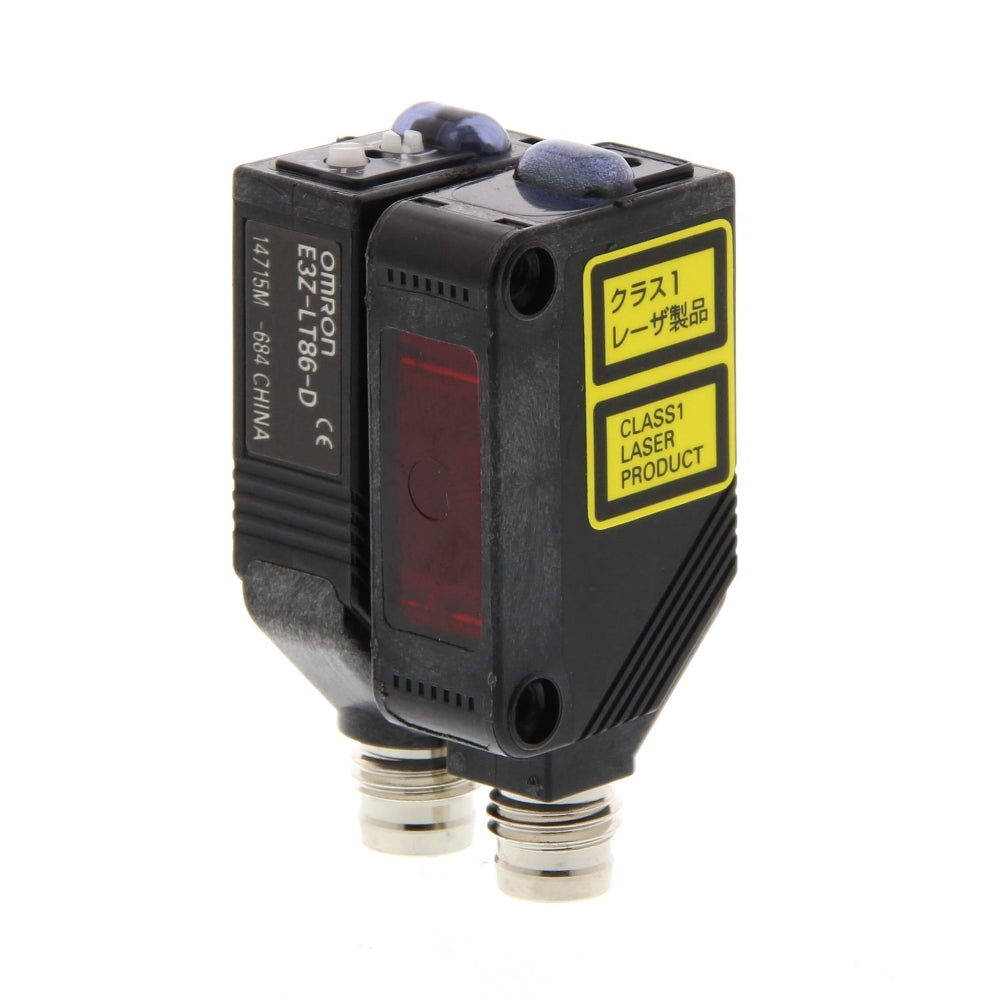

E3Z-LT86 Omron Photoelectric Sensor

Sensor Type

Laser Photoelectric Sensor

Sensing Method

Through-beam

Sensing Distance

60 m

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON selectable

Light Source

Red laser diode

Wavelength

655 nm

Laser Class

Class 1

Supply Voltage

12–24 V DC ±10%

Maximum Load Current

100 mA

Maximum Load Voltage

26.4 V DC

Response Time

1 ms max.

Standard Sensing Object

Opaque object, 12 mm diameter minimum

Minimum Detectable Object

6 mm diameter at 3 m (reference value)

Spot Size

5 mm diameter max. at 3 m

Connection

M8 4-pin connector

Cable Length

No integral cable; mating connector required

Housing Material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection Rating

IP67

Operating Temperature

−10°C to +55°C

Shape

Rectangular / cuboid

Sensitivity Adjustment

Manual, one-turn adjuster
