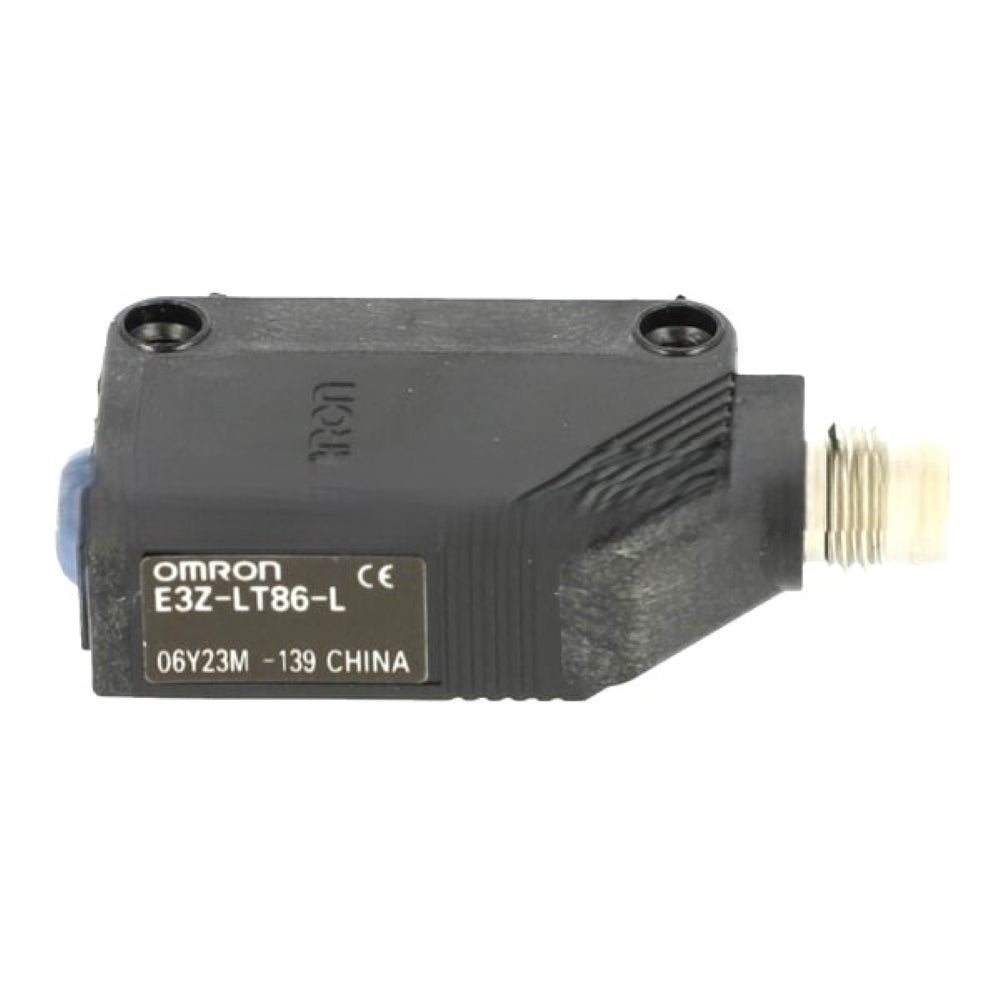

E3Z-LT86-L Omron Photoelectric Sensor

Series

E3Z-LT

Sensing method

Through-Beam

Component

Emitter / Transmitter

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Sensing distance

60 m

Supply voltage

12–24 VDC ±10%

Current consumption

15 mA maximum

Response time

1 ms maximum (system)

Connection type

M8, 4-pin connector

Cable length

0 m, connector version

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−10°C to +55°C

Storage temperature

−25°C to +70°C

Output type

None — emitter only

Output operation

Not applicable

Shape

Rectangular

Weight

Approx. 20 g packed, connector version

Adjustment

Manual sensitivity adjustment is on the receiver

Indicator

Orange power indicator
