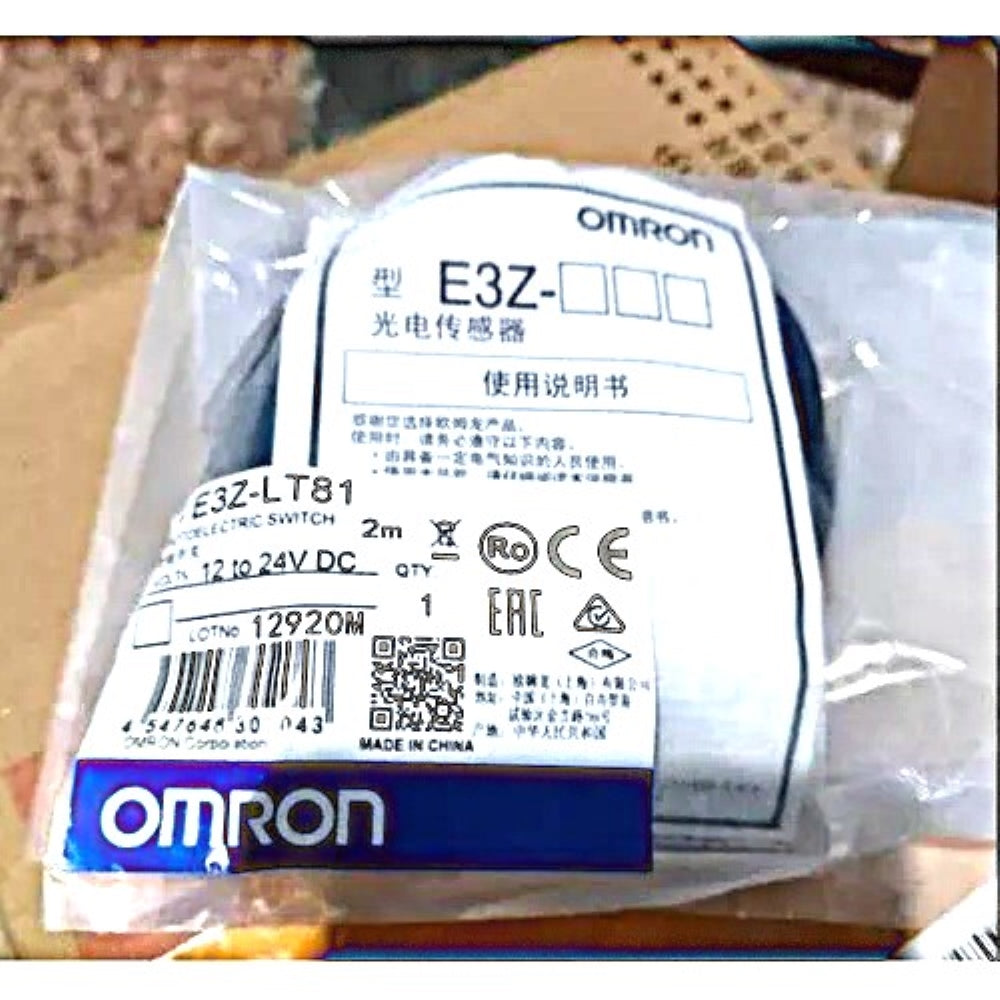

E3Z-LT81 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LT81

Sensor Type

Laser Photoelectric Sensor

Sensing Method

Through-beam

Sensing Distance

60 m

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON selectable

Light Source

Red laser diode

Wavelength

655 nm

Laser Class

Class 1

Supply Voltage

12–24 V DC ±10%

Current Consumption

Emitter: 15 mA max; Receiver: 20 mA max

Maximum Load Current

100 mA

Maximum Load Voltage

26.4 V DC

Response Time

1 ms max

Standard Sensing Object

Opaque object, 12 mm diameter minimum

Minimum Detectable Object

6 mm diameter at 3 m (reference value)

Spot Diameter

5 mm at 3 m (reference value)

Connection Type

Pre-wired cable

Cable Length

2 m

Housing Material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection Rating

IP67

Operating Temperature

−10°C to +55°C

Shape

Rectangular

Sensitivity Adjustment

One-turn adjuster
