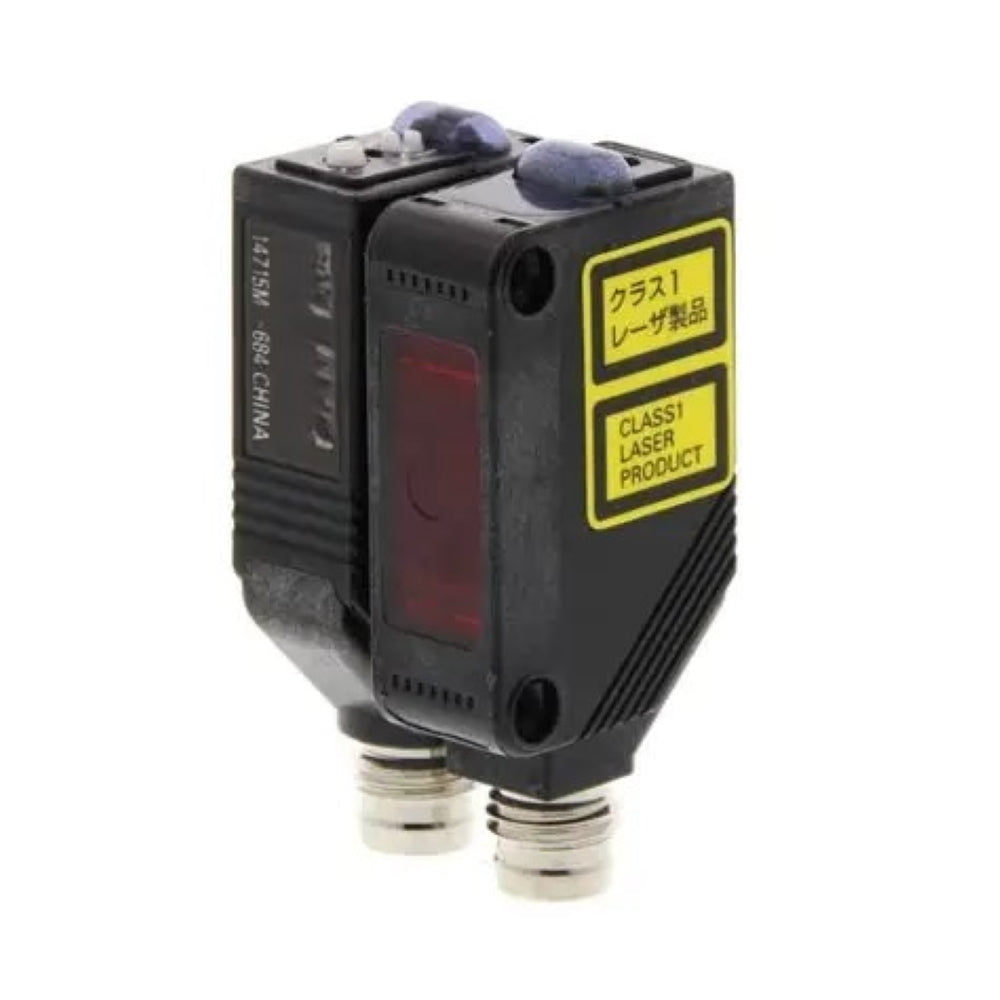

E3Z-LT66-UL Omron Photoelectric Sensor

Model

E3Z-LT66-UL

Sensing method

Through-beam

Sensing distance

60 m

Light source

Red laser diode, 655 nm

Laser safety class

Class 1

Output type

NPN open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

12–24 V DC ±10%

Emitter current consumption

15 mA max.

Receiver current consumption

20 mA max.

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Response time

1 ms max.

Standard sensing object

Opaque object, 12 mm diameter min.

Minimum detectable object

6 mm diameter at 3 m

Spot diameter

5 mm max. at 3 m

Connection type

M8, 4-pin connector

Protection rating

IP67

Housing material

PBT

Lens material

Modified polyarylate resin

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating temperature

−10°C to +55°C

Sensitivity adjustment

Single-turn adjuster

Packed weight

Approx. 30 g
