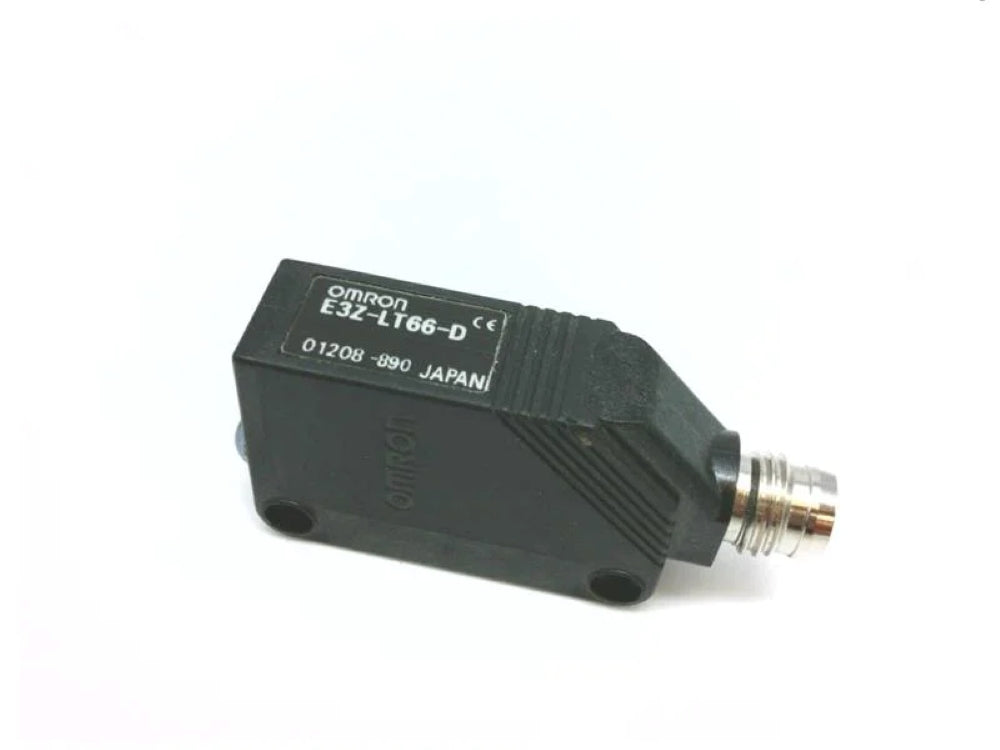

E3Z-LT66-D Omron Photoelectric Sensor

Product type

Photoelectric Sensor Receiver

Series

E3Z-LT Series

Sensing method

Through-Beam

Sensing distance

60 m (with compatible emitter)

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Output type

NPN open collector

Output operation

Light-ON / Dark-ON selectable

Supply voltage

12–24 VDC ±10%

Maximum load current

100 mA

Maximum load voltage

26.4 VDC

Response time

1 ms maximum

Connection type

M8, 4-pin connector

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−40°C to +55°C

Current consumption

35 mA maximum for emitter and receiver set; receiver approximately 20 mA

Adjustment

Manual sensitivity adjustment

Indicators

Operation and stability indicators

Short-circuit protection

Yes

Reverse polarity protection

Yes

Shape

Rectangular

Weight

Approx. 20 g packed, standard connector version
