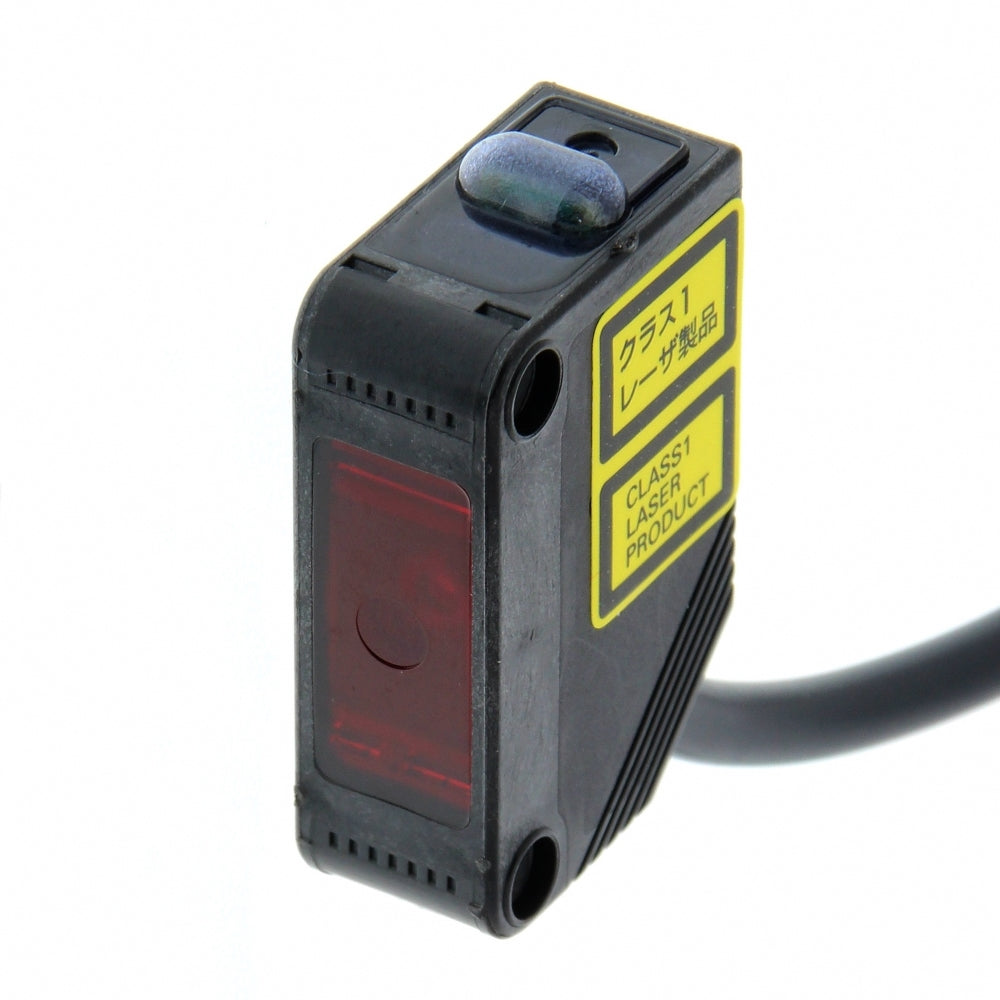

E3Z-LT61-L Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LT61-L 2M

Sensor type

Laser photoelectric sensor

Sensing method

Through-beam

Component

Emitter / transmitter

Sensing distance

60 m (with matching receiver)

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Supply voltage

12–24 V DC ±10%

Current consumption

Approx. 15 mA (emitter)

Response time

1 ms maximum for the sensor system

Output

Emitter has no switching output

Connection

Pre-wired cable

Cable length

2 m

Protection rating

IP67

Housing material

PBT

Operating temperature

−10 to +55°C

Storage temperature

−25 to +70°C

Ambient humidity

35–85% RH operating

Mounting

Two M3 mounting holes

Dimensions

Approx. 12 × 31 × 20 mm body envelope

Weight

Approx. 20 g (emitter, approximate)
