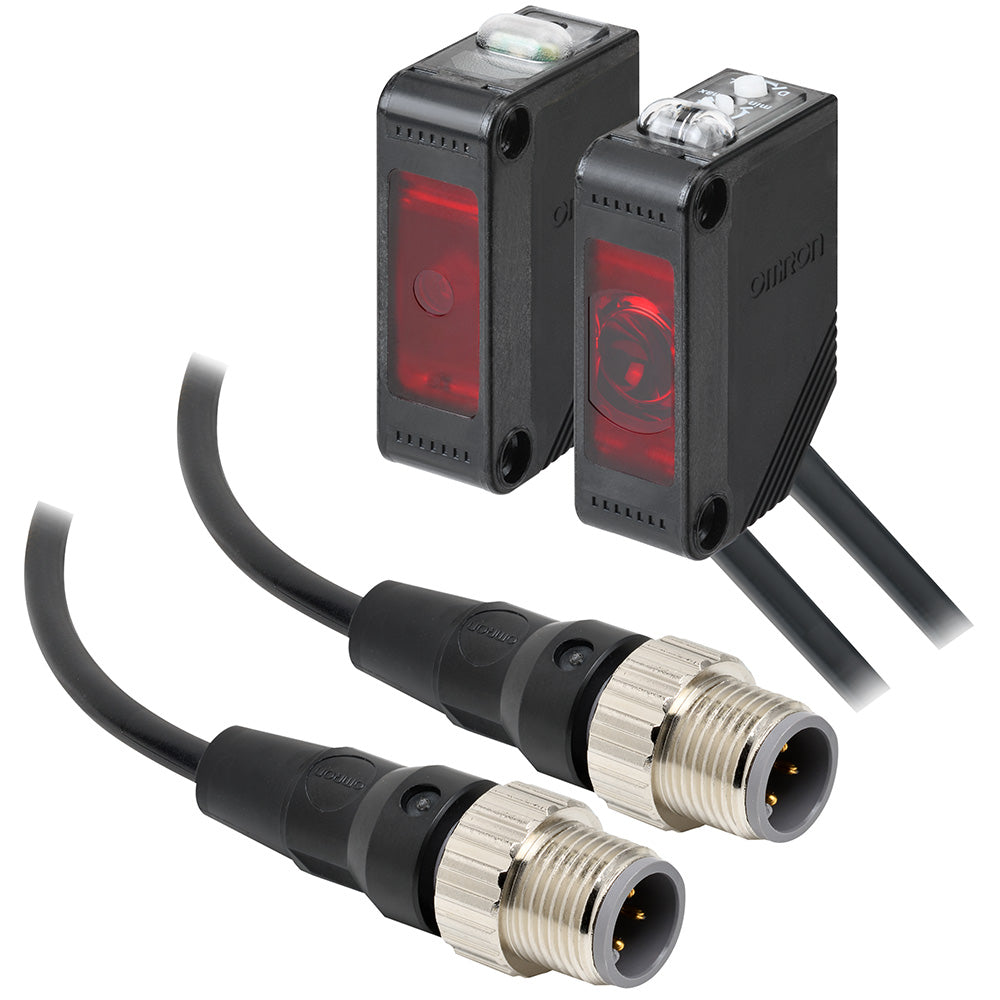

E3Z-LT61-D Omron Photoelectric Sensor

Sensing Method

Through Beam Receiver

Sensing Distance

60 m with compatible emitter

Light Source

Red Laser Diode 655 nm

Laser Safety Class

Class 1

Output Type

NPN Open Collector

Operation Mode

Light ON And Dark ON Selectable

Operating Voltage

12 to 24 V DC

Maximum Load Current

100 mA

Current Consumption

20 mA Maximum

Response Time

1 ms Maximum

Connection Method

Pre Wired Cable

Standard Cable Length

2 m

Number Of Wires

3

Protection Class

IP67

Housing Material

PBT

Lens Material

Modified Polyarylate Resin

Operating Temperature

Minus 10 To 55 Deg C

Storage Temperature

Minus 25 To 70 Deg C

Sensitivity Adjustment

One Turn Adjuster

Indicators

Operation Indicator Orange And Stability Indicator Green

Protection Features

Reverse Power Polarity Protection And Output Short Circuit Protection

Standard Sensing Object

Opaque Object 12 mm Diameter Minimum
