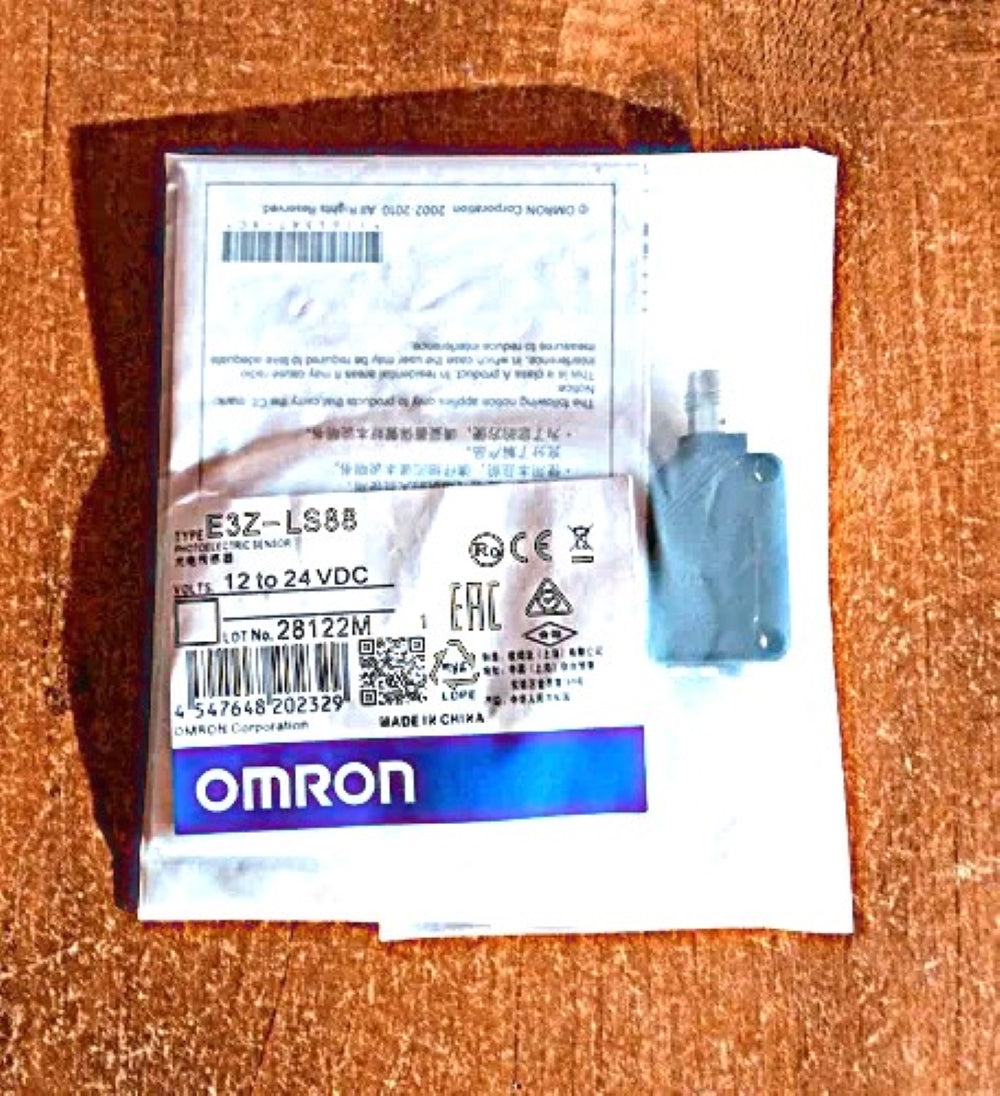

E3Z-LS88 Omron Photoelectric Sensor
E3Z-LS88 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-LS88 Omron Photoelectric Sensor
| Specification | E3Z-LS88 |
|---|---|
| Brand | Omron |
| Series | E3Z-LS |
| Sensor Type | Distance-Settable Photoelectric Sensor |
| Sensing Method | BGS / Background Suppression |
| Sensing Distance | 2–80 mm |
| Setting Range | 20–80 mm |
| Standard Target | White paper, 25 × 25 mm |
| Output Type | PNP Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| Light Source | Red LED |
| Wavelength | 650 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Load Current | 100 mA max. |
| Residual Voltage | 1 V max. |
| Response Time | 1 ms max. |
| Connection | M8, 4-pin connector |
| Cable | Connector cable ordered separately |
| Sensitivity Adjustment | 5-turn endless adjustment |
| Differential Travel | 2% max. of setting distance |
| Black/White Error | 5% max. of setting distance |
| IP Rating | IP67 |
| Housing Material | PBT |
| Lens Material | Modified polyarylate resin |
| Dimensions (W × H × D) | 10.8 × 31 × 20 mm |
| Operating Temperature | −25 to +55°C |
| Storage Temperature | −40 to +70°C |
| Operating Humidity | 35–85% RH |
| Ambient Light | Incandescent 3,000 lx max.; Sunlight 10,000 lx max. |
| Shape | Cuboid / rectangular |
| NO / NC | Not fixed; Light-ON / Dark-ON selectable |
| Protection | Reverse polarity + output short-circuit + mutual interference protection |
