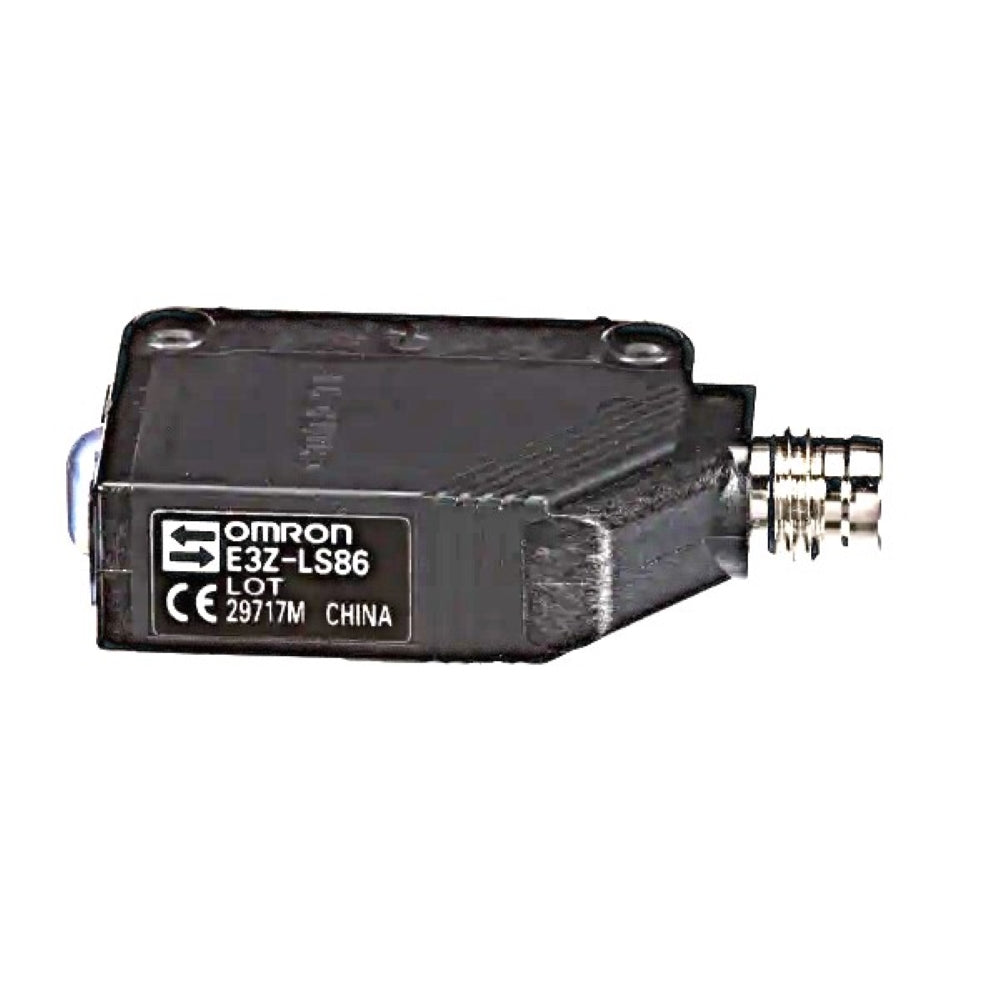

E3Z-LS86 OMRON Photoelectric Sensor
E3Z-LS86 OMRON Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-LS86 Omron Photoelectric Sensor
| Specification | E3Z-LS86 |
|---|---|
| Brand | Omron |
| Series | E3Z-LS |
| Sensor Type | Distance-Settable Photoelectric Sensor |
| Sensing Method | BGS / Background Suppression |
| Output | PNP Open Collector |
| Sensing Distance | 20 mm to Set Distance |
| Maximum Sensing Distance | 200 mm |
| Setting Range – White Paper | 40–200 mm |
| Setting Range – Black Paper | 40–160 mm |
| Light Source | Red LED |
| Wavelength | 670 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Load Current | 100 mA max. |
| Output Mode | Light-ON / Dark-ON selectable |
| Response Time | 1 ms max. |
| Connection | M8, 4-pin connector |
| Cable | Connector cable required separately |
| Distance Adjustment | 5-turn endless adjuster |
| Differential Travel | 10% max. of set distance |
| Black/White Error | 10% max. of set distance |
| IP Rating | IP67 |
| Housing Material | PBT |
| Lens Material | Modified polyarylate resin |
| Operating Temperature | −25 to +55°C |
| Storage Temperature | −40 to +70°C |
| Operating Humidity | 35–85% RH |
| Ambient Light | Sunlight 10,000 lx max.; incandescent 3,000 lx max. |
| Protection | Reverse polarity, output short-circuit, mutual interference protection |
| Shape | Compact rectangular |
