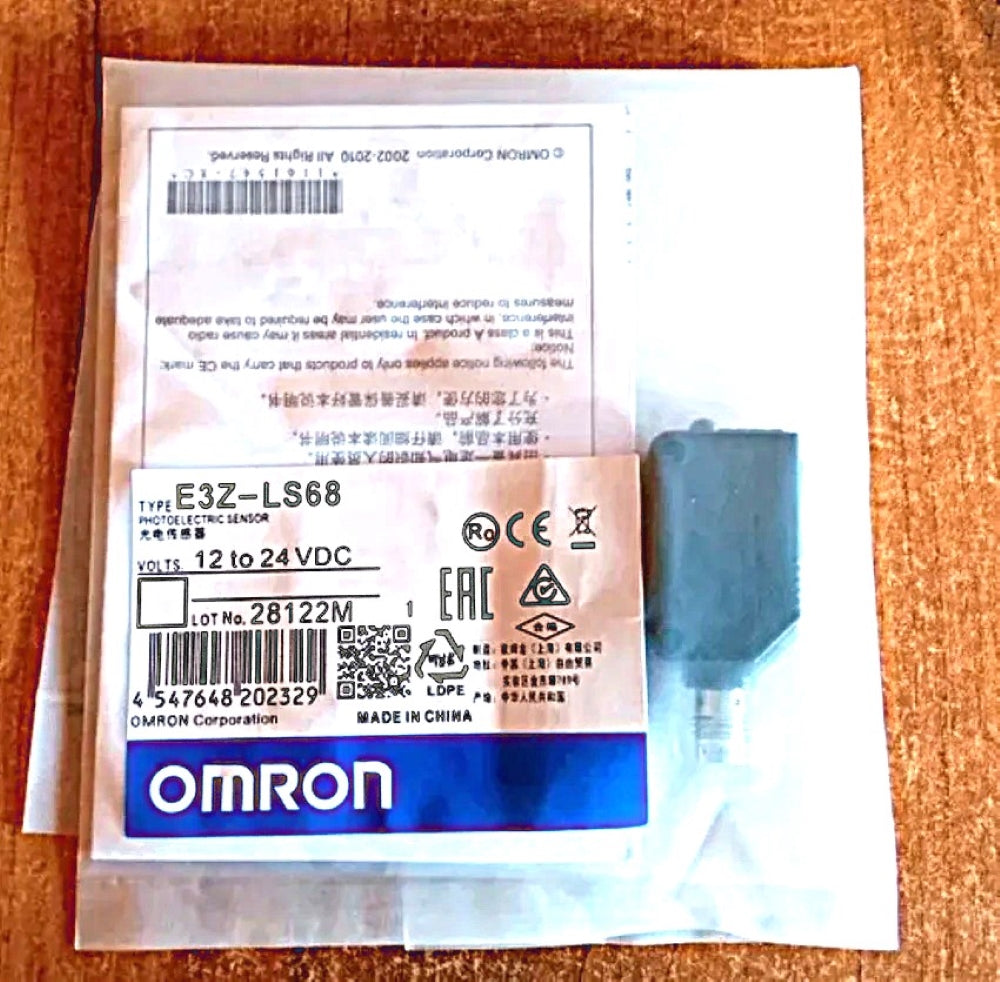

E3Z-LS68 Omron Photoelectric Sensor
| Specification | E3Z-LS68 |
|---|---|
| Brand | Omron |
| Series | E3Z-LS |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Distance-Settable |
| Detection Principle | BGS (Background Suppression) |
| Output Type | NPN Open Collector |
| Sensing Distance | 2 mm to 80 mm |
| Setting Range | 20 to 80 mm |
| Standard Target | White paper, 25 × 25 mm |
| Light Source | Red LED |
| Wavelength | 650 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Load Current | 100 mA max. |
| Output Mode | Light-ON / Dark-ON selectable |
| Response Time | 1 ms max. |
| Connection | M8, 4-pin connector |
| Cable | Separate M8 sensor I/O cable required |
| Sensitivity Adjustment | 5-turn endless adjuster |
| Differential Travel | 2% max. of set distance |
| Black/White Error | 5% max. of set distance |
| IP Rating | IP67 |
| Housing Material | PBT |
| Lens Material | Modified polyarylate resin |
| Operating Temperature | −25 to +55°C |
| Storage Temperature | −40 to +70°C |
| Ambient Humidity | 35–85% RH |
| Weight | Approx. 20 g packed |
| Shape | Compact rectangular/cuboid |
