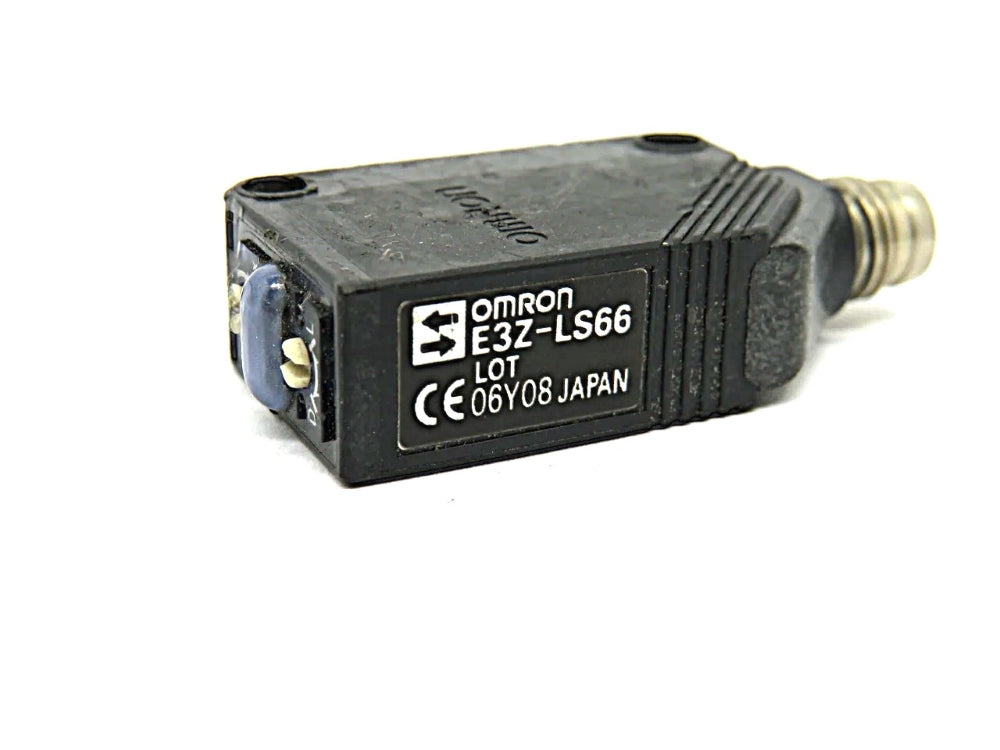

E3Z-LS66 Omron Photoelectric Sensor
E3Z-LS66 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-LS66 Omron Photoelectric Sensor
| Specification | E3Z-LS66 |
|---|---|
| Brand | Omron |
| Series | E3Z-LS |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Distance-Settable / Background Suppression (BGS) |
| Sensing Distance | 20 to 200 mm |
| Setting Range | White paper: 40–200 mm; Black paper: 40–160 mm |
| Output Type | NPN Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| Light Source | Red LED, 670 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Load Current | 100 mA max. |
| Response Time | 1 ms max. |
| Connection | M8, 4-pin connector |
| Cable | Connector type; cable ordered separately |
| IP Rating | IP67 |
| Housing Material | PBT |
| Shape | Cuboid / Square |
| Dimensions (W × H × D) | 10.8 × 31 × 20 mm |
| Operating Temperature | −25 to +55°C |
| Storage Temperature | −40 to +70°C |
| Ambient Light | Incandescent: 3,000 lx max.; Sunlight: 10,000 lx max. |
| Sensitivity Adjustment | 5-turn endless adjuster |
| Differential Travel | 10% of set distance max. |
| Protection | Reverse polarity, output short-circuit, mutual interference protection |
| Weight | Approx. 20 g packed |
