HELIX AUTOMATION SOLUTION
E3Z-LS61 Omron Photoelectric Sensor
E3Z-LS61 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

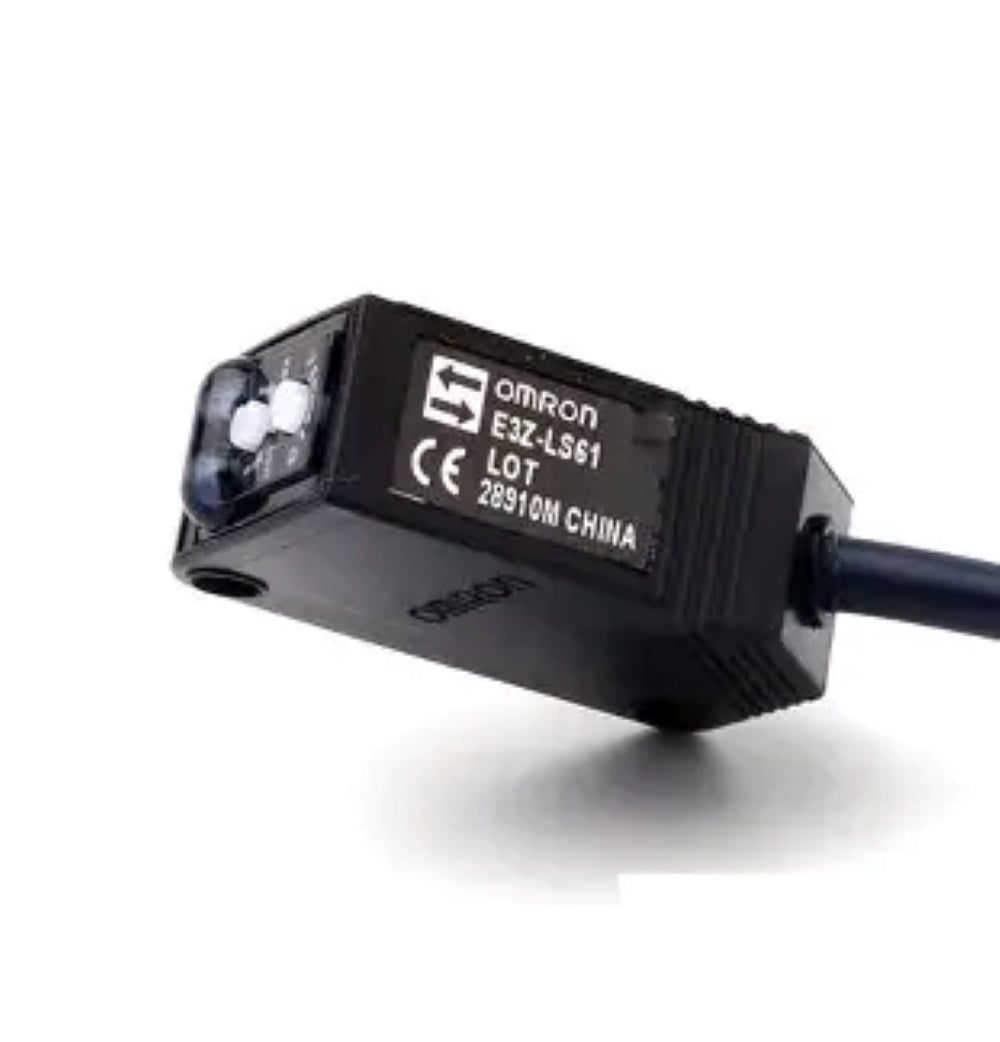

E3Z-LS61 Omron Photoelectric Sensor
| Specification | E3Z-LS61 |
|---|---|
| Brand | Omron |
| Series | E3Z-LS |
| Model | E3Z-LS61 |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Distance-settable / Background Suppression (BGS) |
| Sensing Distance | 20 to 200 mm |
| Setting Range – White Target | 40 to 200 mm |
| Setting Range – Black Target | 40 to 160 mm |
| Output Type | NPN Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| Light Source | Red LED |
| Wavelength | 670 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Control Output | 100 mA max. |
| Response Time | 1 ms max. |
| Distance Adjustment | 5-turn endless adjuster |
| Connection | Pre-wired cable |
| Cable Length | 2 m standard |
| Protection Rating | IP67 |
| Housing Material | PBT |
| Lens Material | Modified polyarylate resin |
| Shape | Cuboid / rectangular |
| Dimensions | 10.8 × 31 × 20 mm |
| Operating Temperature | -25 to +55°C |
| Operating Humidity | 35–85% RH |
| Indicators | Orange operation + green stability |
| Weight | Approx. 65 g packed, 2 m cable |
