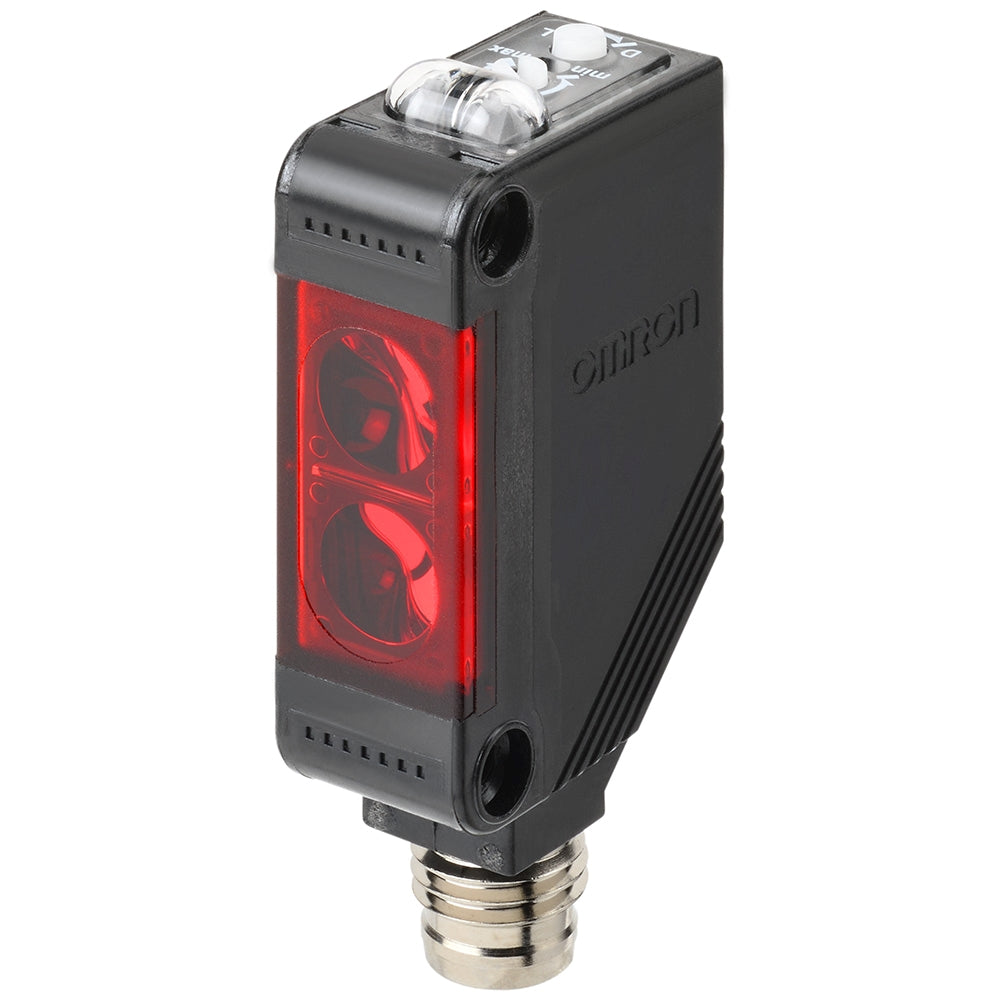

E3Z-LR86-UL Omron Photoelectric Sensor

Model Number

E3Z-LR86-UL

Sensor Type

Photoelectric Sensor

Sensing Method

Retro-reflective with MSR

Sensing Distance

0.2 to 7 m with E39-R12 reflector

Light Source

Red Laser Diode

Wavelength

655 nm

Laser Class

Class 1

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON selectable

Supply Voltage

12–24 V DC ±10%

Maximum Load Current

100 mA

Response Time

1 ms maximum

Connection Type

M8, 4-pin connector

Protection Rating

IP67

Housing Material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating Temperature

-10°C to +55°C

Current Consumption

30 mA maximum

Adjustment

Single-turn sensitivity adjustment

Special Feature

Mutual interference prevention
