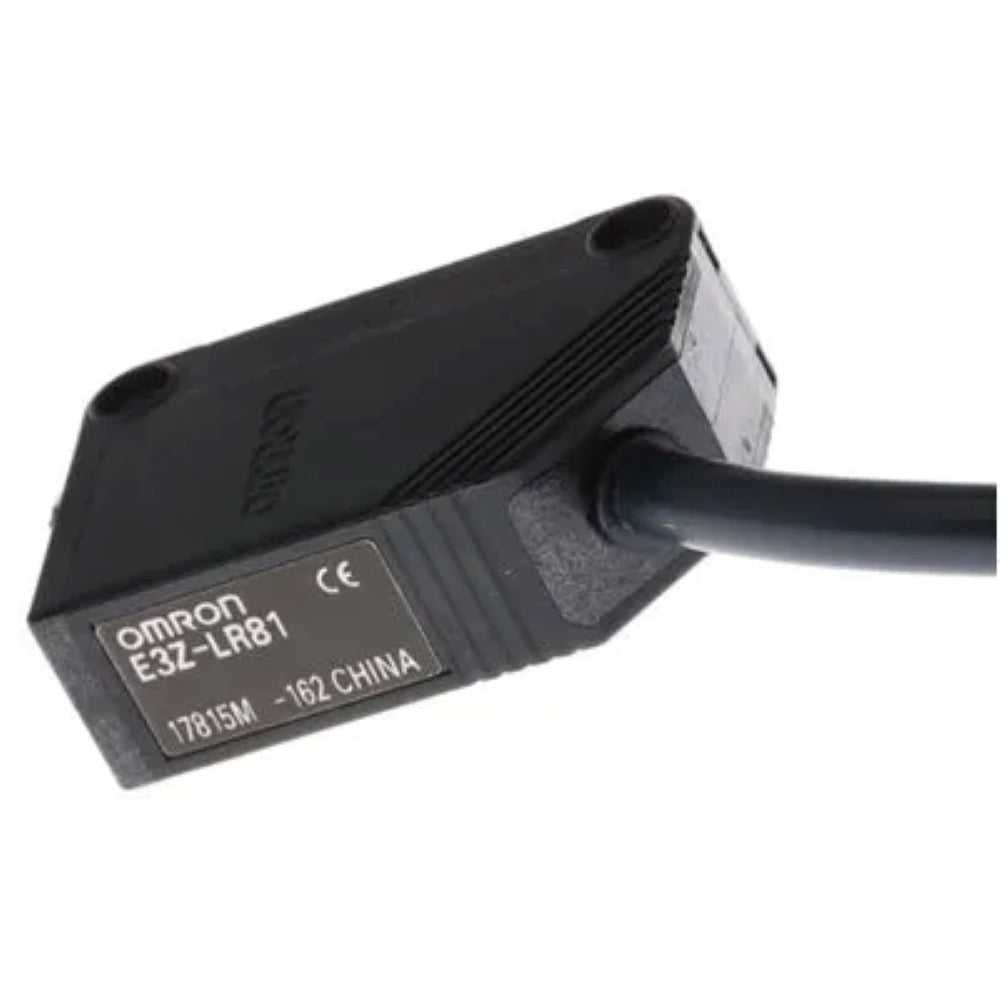

E3Z-LR81-UL Omron Photoelectric Sensor

Sensing Method

Retro-reflective with MSR function

Light Source

Red laser diode, 655 nm

Supply Voltage

12–24 V DC

Maximum Load Current

100 mA

Maximum Load Voltage

26.4 V DC

Residual Voltage

1 V max. below 10 mA; 2 V max. at 10–100 mA

Response Time

1 ms max.

Operation Mode

Light-ON / Dark-ON selectable

Connection Type

Pre-wired cable

Cable Length

2 m

Protection Rating

IP67

Housing Material

PBT

Operating Temperature

-10°C to +55°C

Shape

Rectangular

Weight

Approx. 65 g packed

Frequency

Not specified in the standard datasheet
