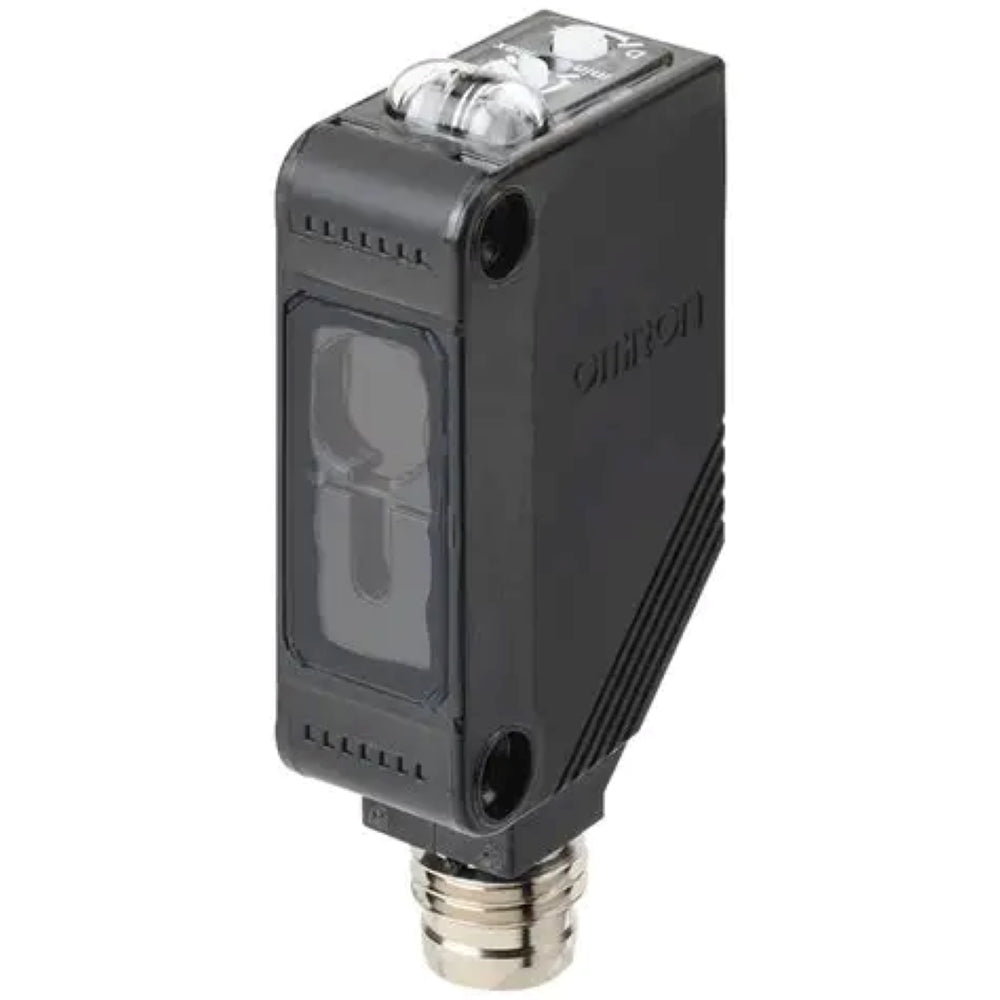

E3Z-LR66-UL Omron Photoelectric Sensor

Sensing distance

0.2–7 m with E39-R12 reflector

Sensing method

Retro-reflective with MSR

Light source

Red laser diode, 655 nm

Laser safety class

Class 1

Output type

NPN open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

12–24 V DC ±10%

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Response time

1 ms max.

Minimum detectable object

0.2 mm diameter stainless-steel pin gauge at 300 mm

Spot diameter

Approx. 5 mm at 3 m

Connection type

M8, 4-pin connector

Protection rating

IP67

Housing material

PBT plastic

Lens material

Methacrylic resin

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating temperature

−10°C to +55°C

Sensitivity adjustment

Single-turn adjuster

Packed weight

Approx. 20 g
